Specification
| Profile Alloy | 6063 |
| Glass Thickness | 05mm to 38mm |
| Glass Option | Single/Laminate/DGU/DGU Laminate/Inside Blind |
| Sound Reduction | Up to 30 db |
| Max Width/Shutter | 900mm |
| Max Height/Shutter | 2700mm |
| Max Weight/Shutter | 120 kgs |
| Bottom Frame | Yes/No |
| Multi Locking / Single Point Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hinge | Butt/Friction |
| Opening | Side Hung / Top Hung |

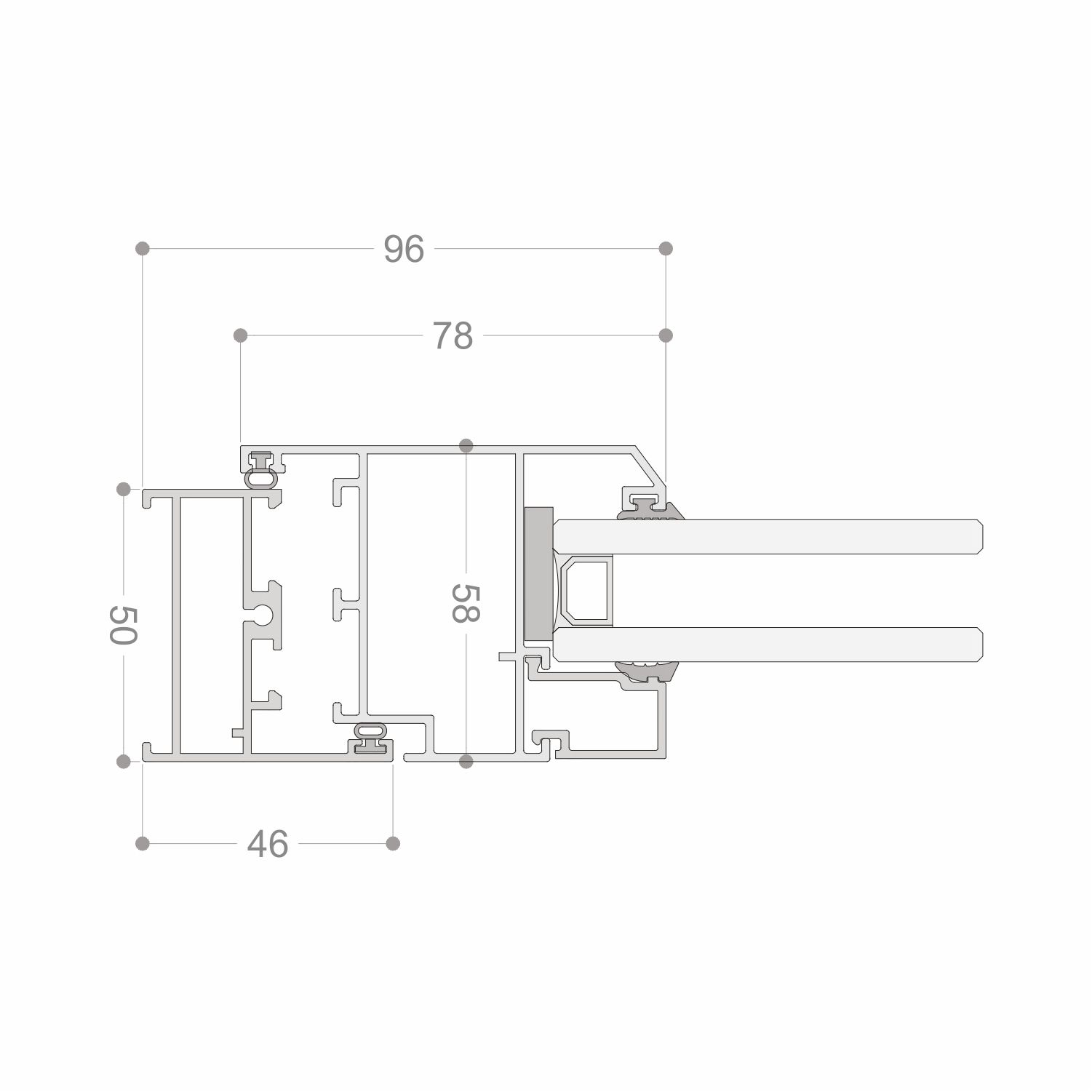

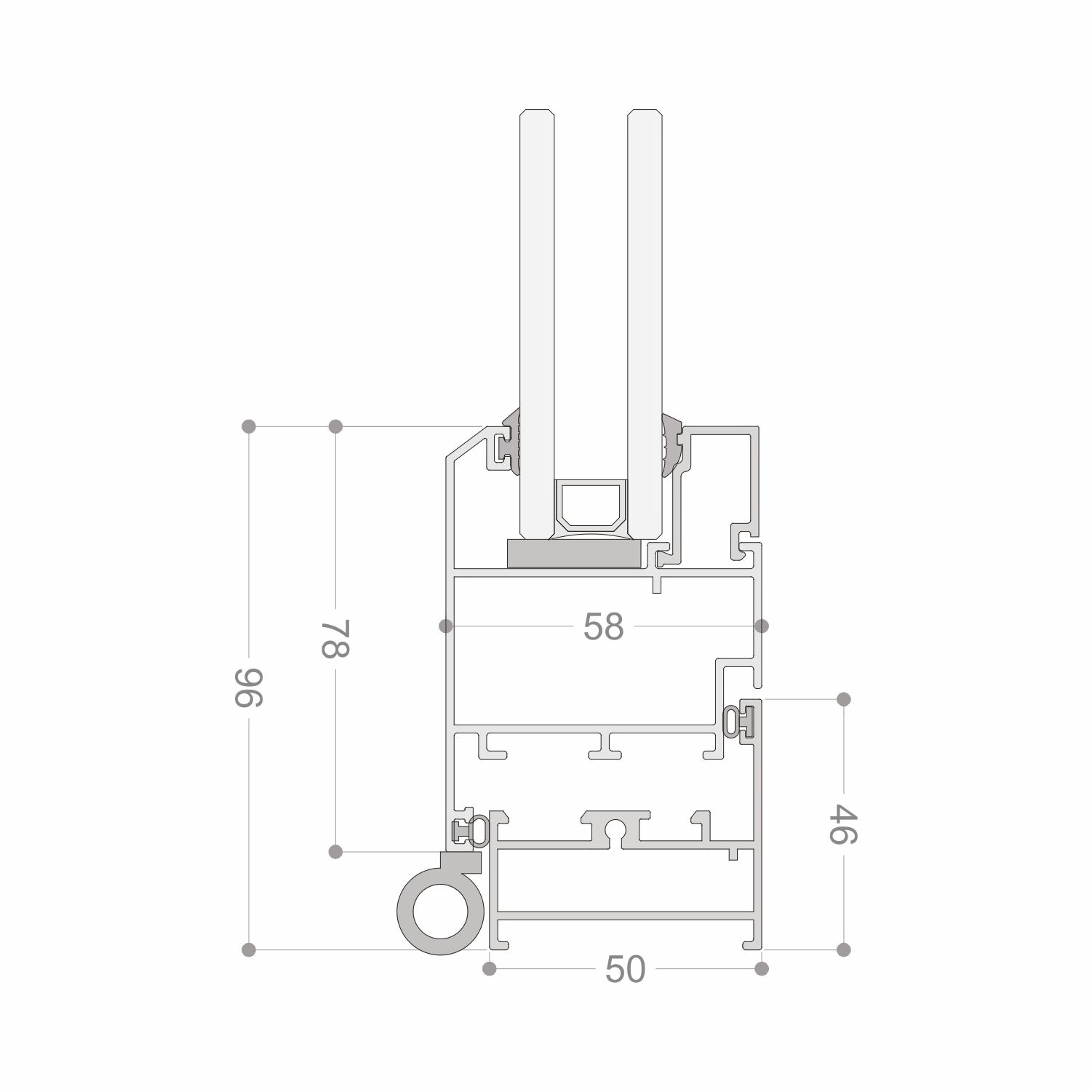

| Frame Height | 46 mm |
| Frame Width | 50 mm |
| Shutter | 58mm X 78mm |
| Mullion Sightline with Shutter | 170mm |
×
![Expanded View]()
