Specification
| Profile Alloy | 6063 |
| Glass Thickness | 08mm to 38mm |
| Glass Option | Single/Laminate/DGU/DGU Laminate/Inside Blind |
| Sound Reduction | Up to 30 db |
| Max Width/Shutter | 1200mm |
| Max Height/Shutter | 3000mm |
| Max Weight/Shutter | 160 kgs |
| Bottom Frame | Yes/No |
| Multi Locking / Single Point Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hinge | Butt |
| Opening | In/Out |
| Frame Height | 72 mm |
| Frame Width | 50 mm |
| Shutter | 58mm X 96mm |
×

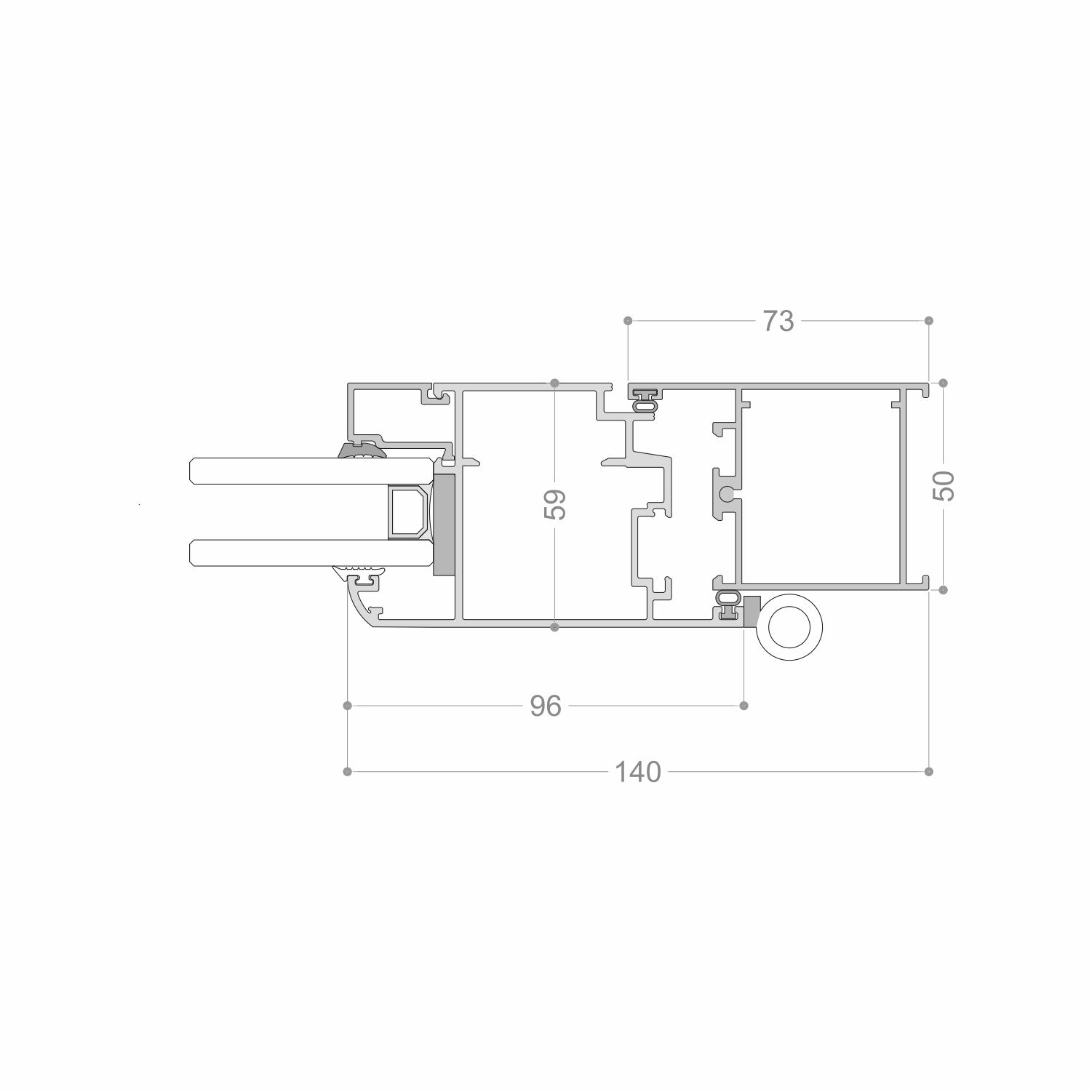

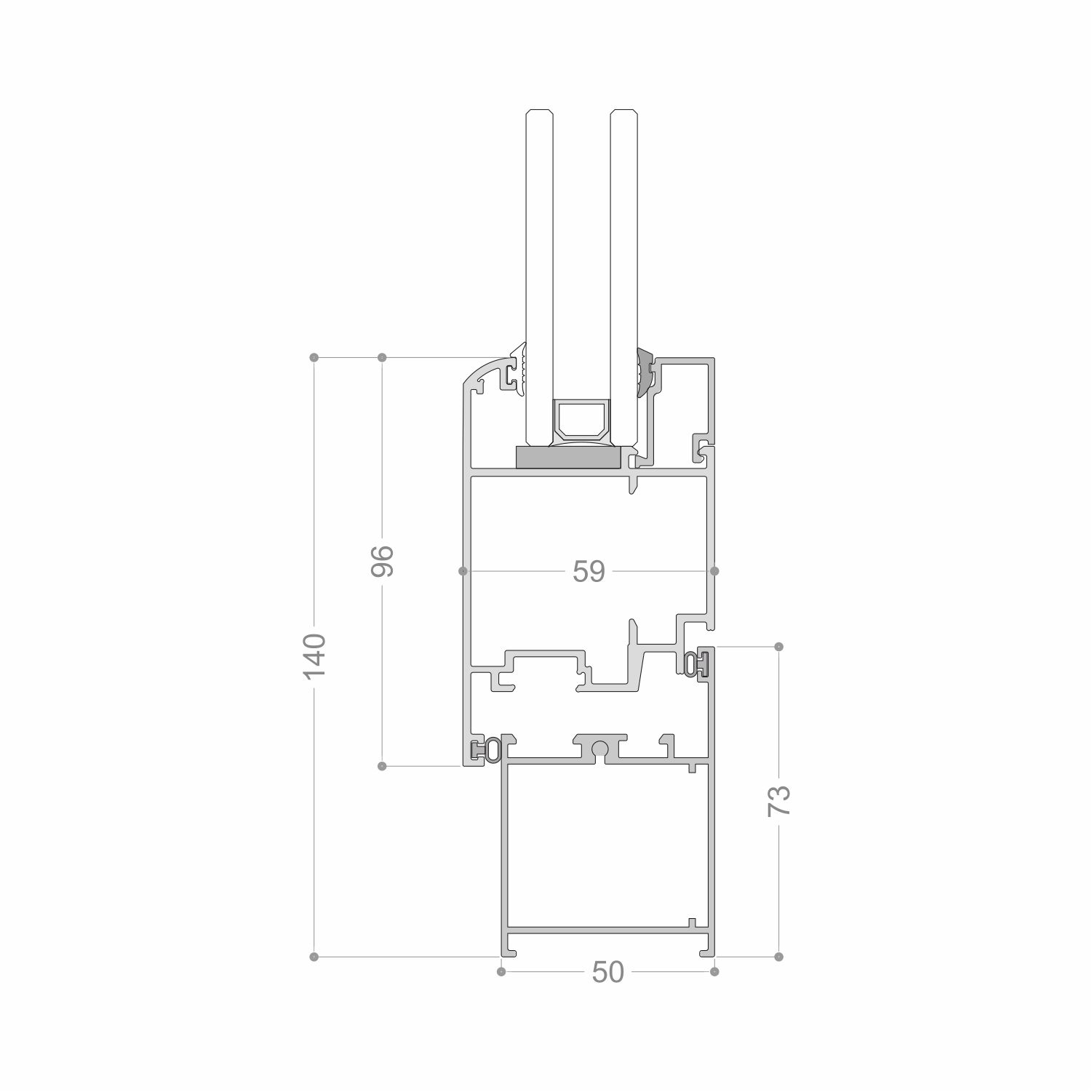

![Expanded View]()
