AZ 15 Slim

STREAMLINED FOR MODERN LIVING.

Minimal design that enhances any architectural space while maximizing natural light. Its refined profiles provide a perfect blend of modern aesthetics and superior performance.

Specification

Profile Alloy 6063
Glass Thickness 06mm to 20mm
Max Height/Shutter 3200 mm
Max Weight/Shutter 350 kg
Multi Locking/Single Point Locking Yes
Mosquito Mesh Solution Yes
Corner Opening Yes
Roller Bearings S.S. 304 Grade/Nylon
Stainless Steel Rail Yes

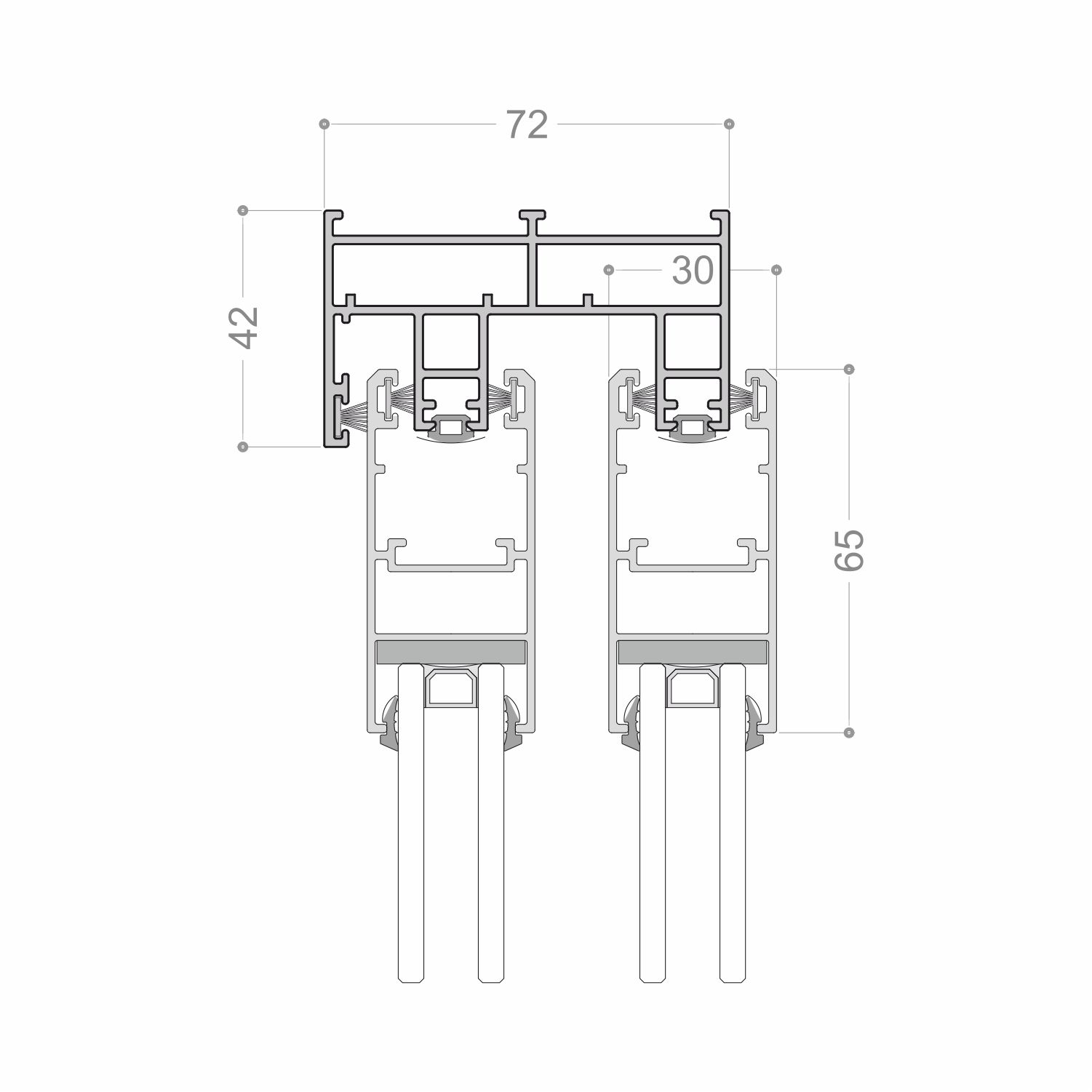

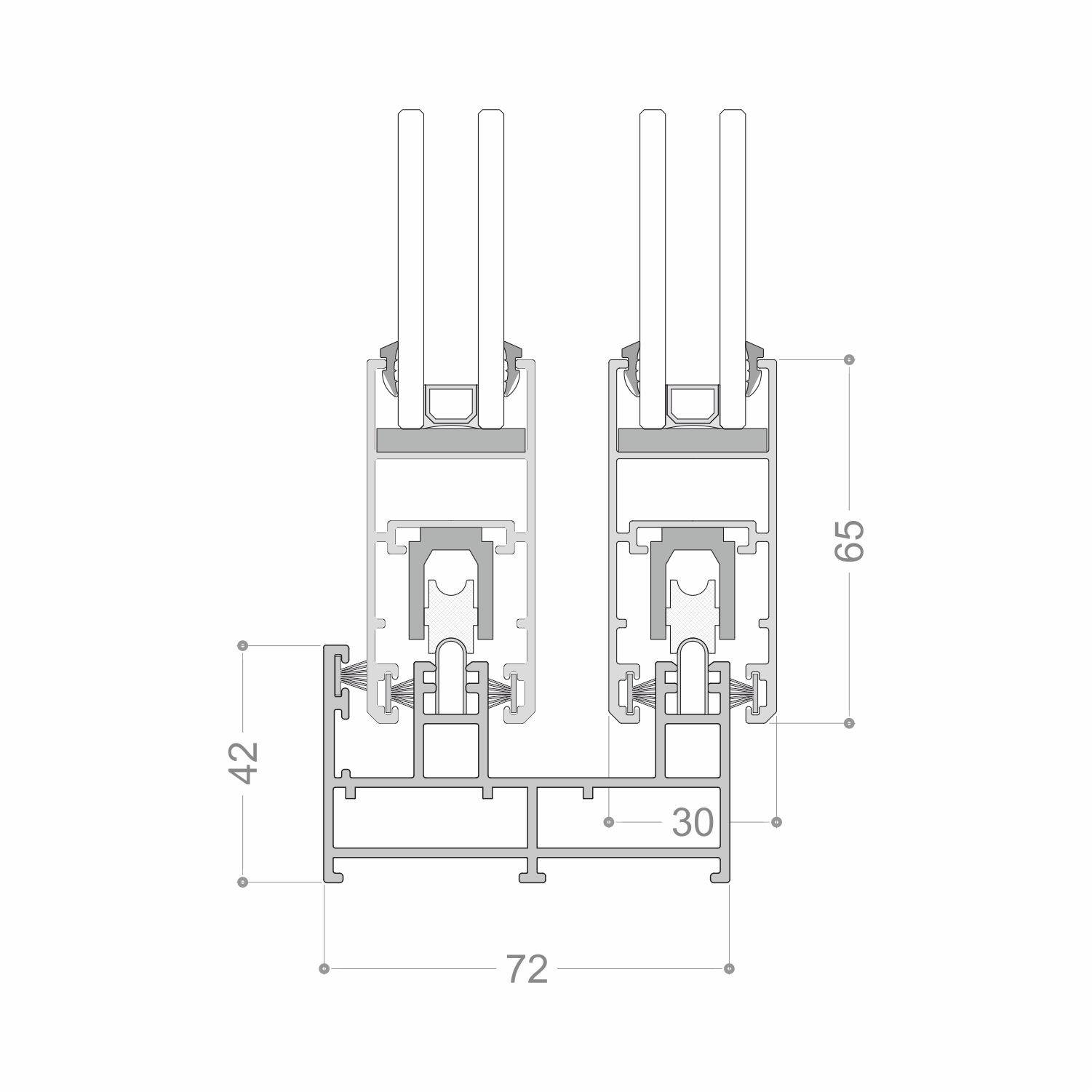

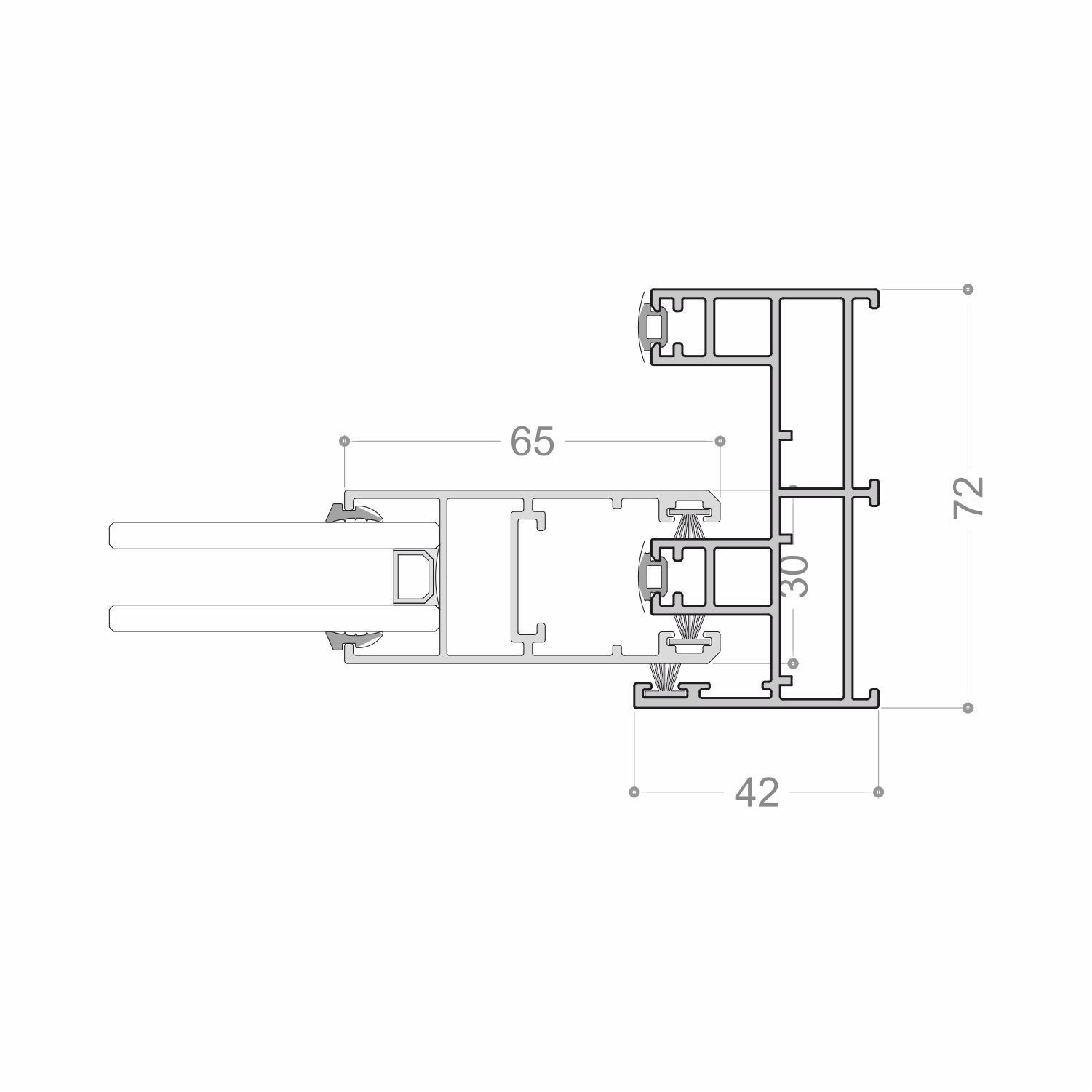

Frame Height 43 mm
Frame Width (2T) 72 mm
Frame Width (3T) 115 mm
Frame Width (4T) 158 mm
Sightline At Interlock (Option) 15mm, 25mm, 65mm
Sound Insulation 30 db
Wind Load Resistance Up To 2KPa
Air Permeability 250Pa
Water Tightness 340Pa
