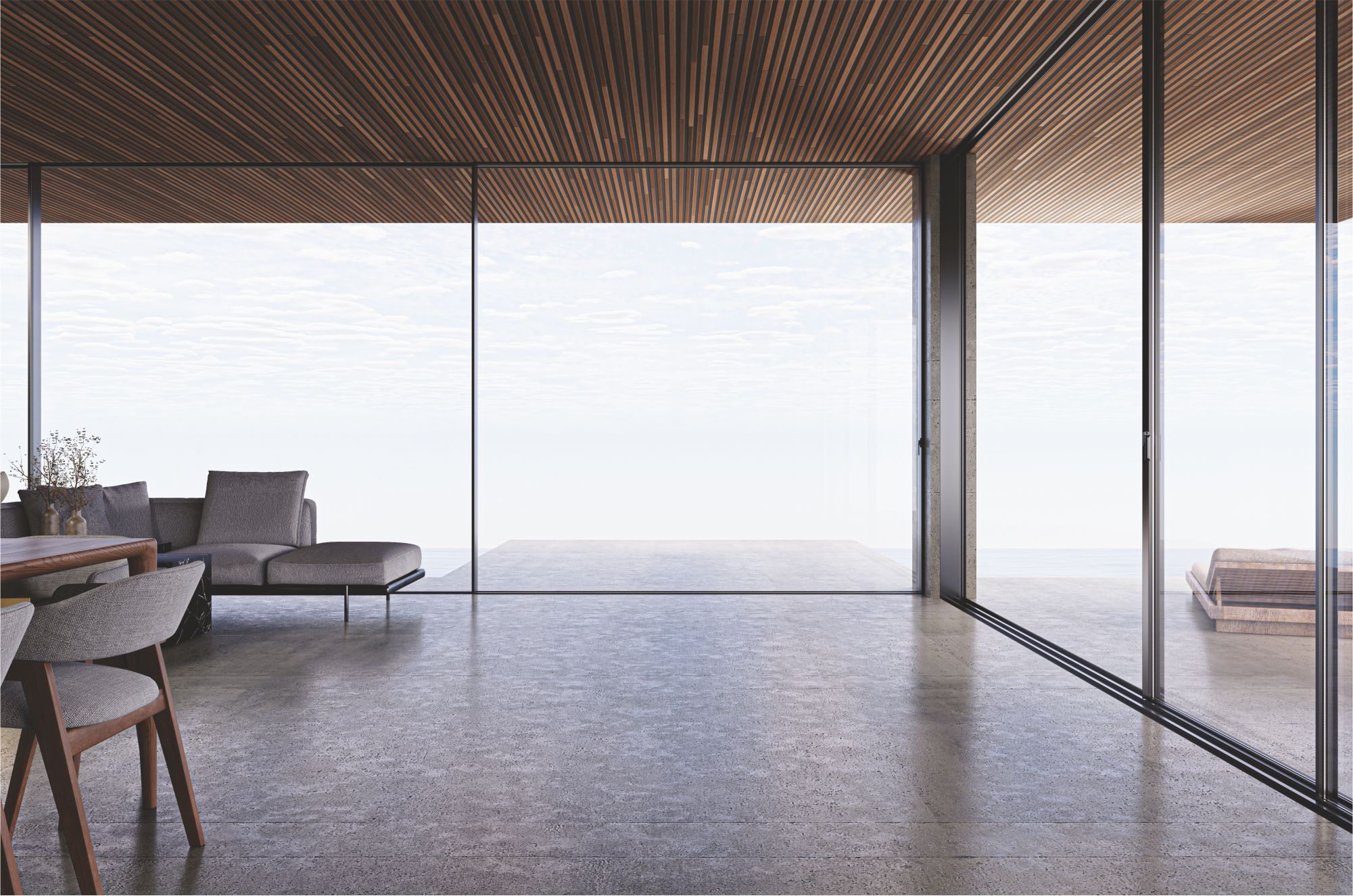

SLEEK LINES, ENDLESS VIEWS.
AZ 17 Minimal redefines elegance with its sleek profile, maximizing views and bringing sophistication to any space.
Specification
| Profile alloy | 6063 |
| Glass thickness | Min 12mm / Max 26mm |
| Max Height/Shutter | 5200 mm |
| Max Weight/Shutter | 700 kg |
| Multi Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hidden Bottom | Yes |
| Corner Opening | Yes |
| Roller Bearings (320 KG/ Per Bearing) | S.S. 304 Grade |
| Stainless Steel Rail | S.S. 304 Grade |
| Frame Height | 42 mm |

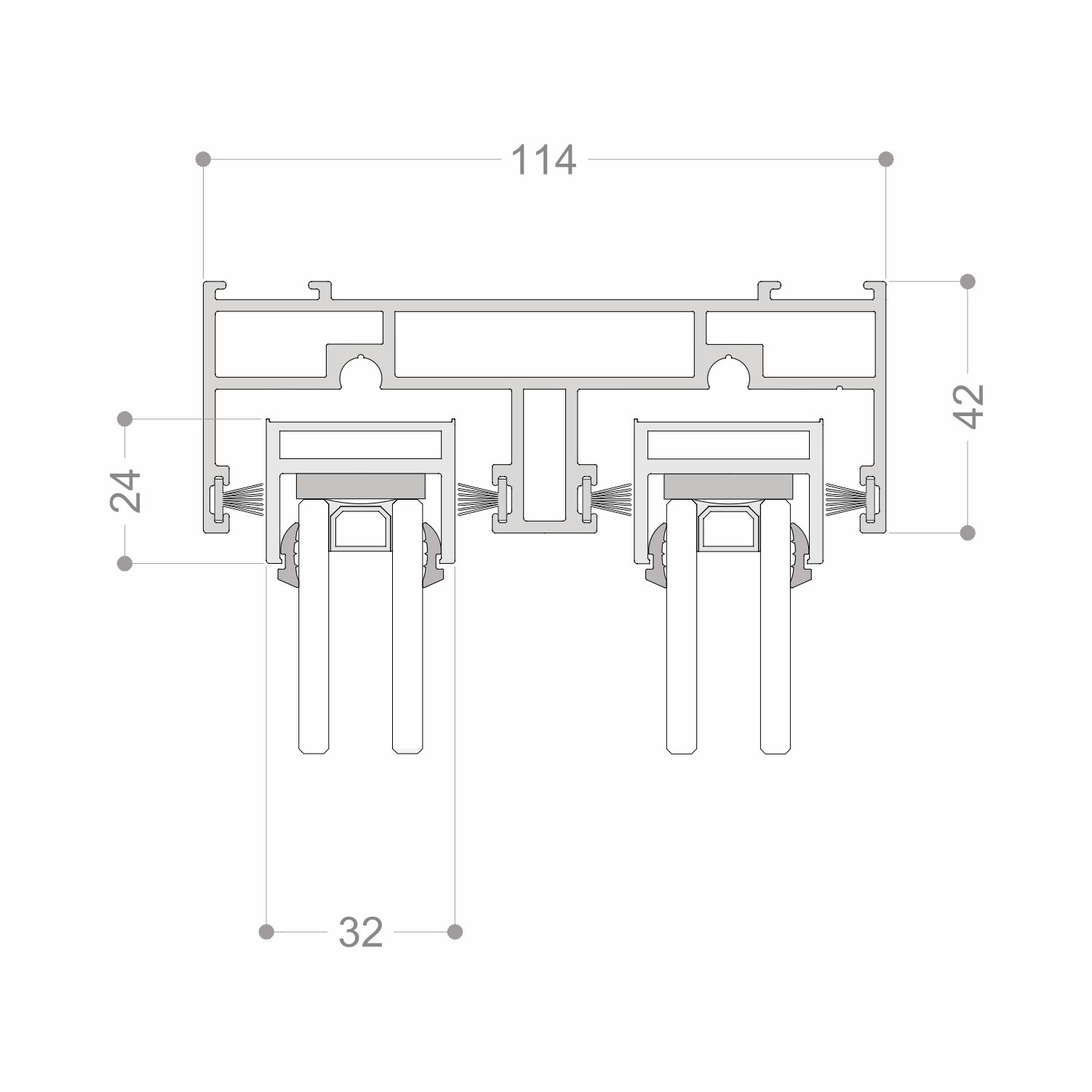

| Frame Width (2T) | 114 mm |
| Frame Width (3T) | 175 mm |
| Sightline At Interlock | 17 mm |
| Sound Insulation | 35 db |
| Wind Load Resistance | Up To 2.5KPa |
| Air Permeability | 300Pa |
| Water Tightness | 390 Pa |
×
![Expanded View]()
