PRIME STRENGTH, SLEEK DESIGN.
Design with a sturdy profile, AZ 20 Prime ensures long-lasting performance with a touch of sophistication
Specification
| Profile Alloy | 6063 |
| Glass Thickness | 05mm to 18mm |
| Max Height/Shutter | 3000 mm |
| Max Weight/Shutter | 250 kg |
| Multi Locking/Single Point Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Corner Opening | Yes |
| Roller Bearings | S.S. 304 Grade/Nylon |
| Stainless Steel Rail | Yes |
| Frame Height | 43 mm |
| Frame Width (2T) | 66 mm |
| Frame Width (3T) | 105 mm |
| Sightline At Interlock (Option) | 25mm, 65mm |
| Sound Insulation | 25 db |
| Wind Load Resistance | Up To 1.8KPa |
| Air Permeability | 230Pa |
| Water Tightness | 320 Pa |
×

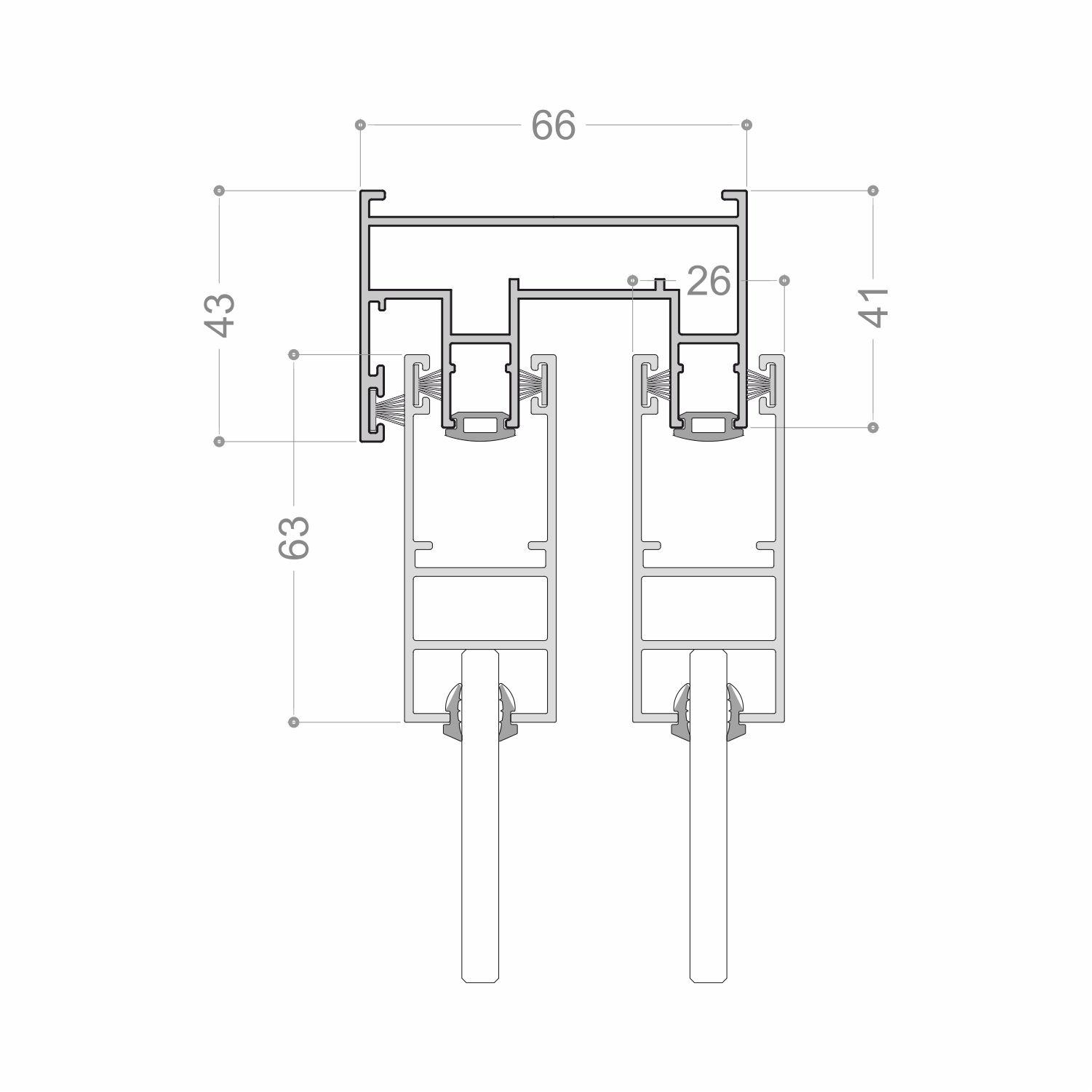

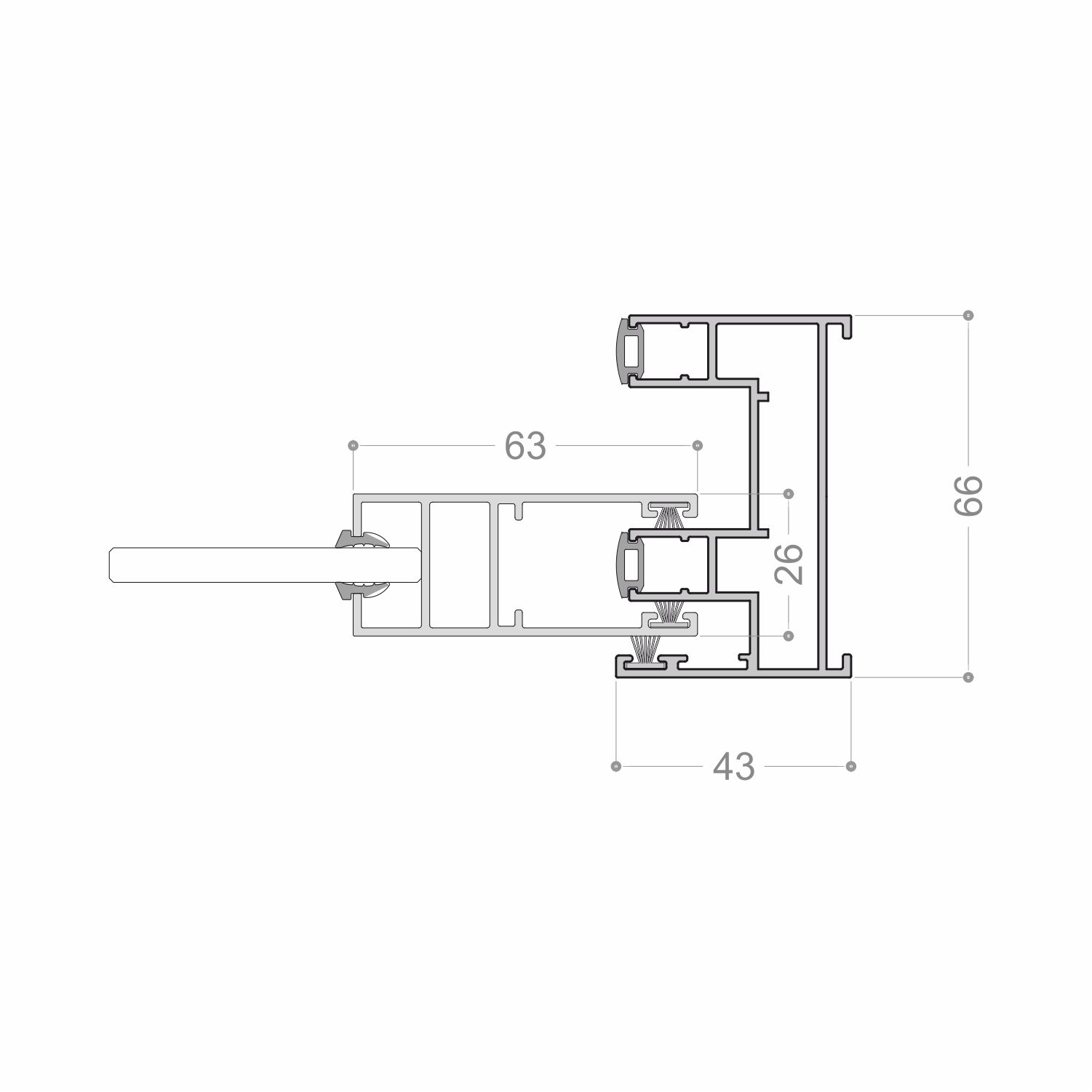

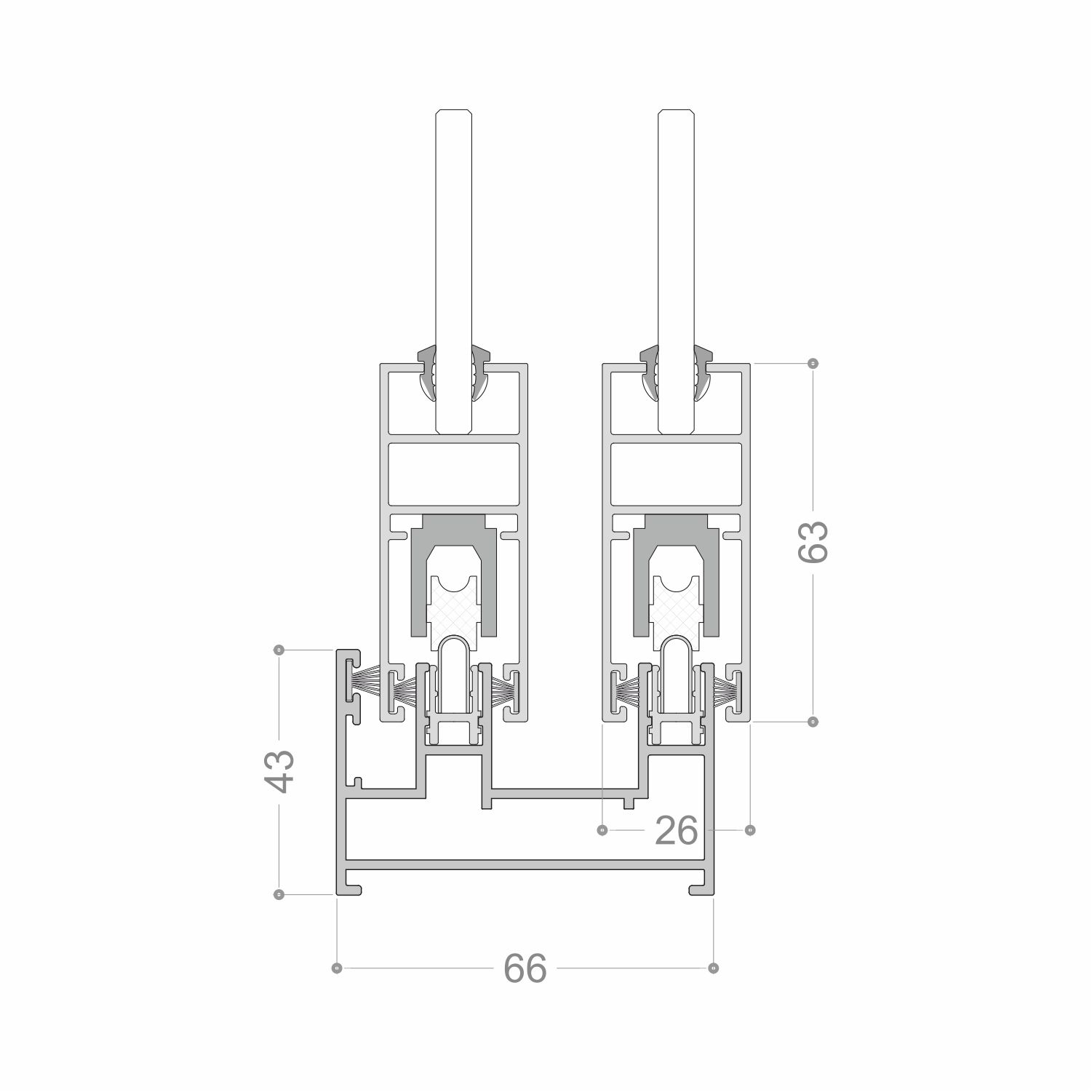

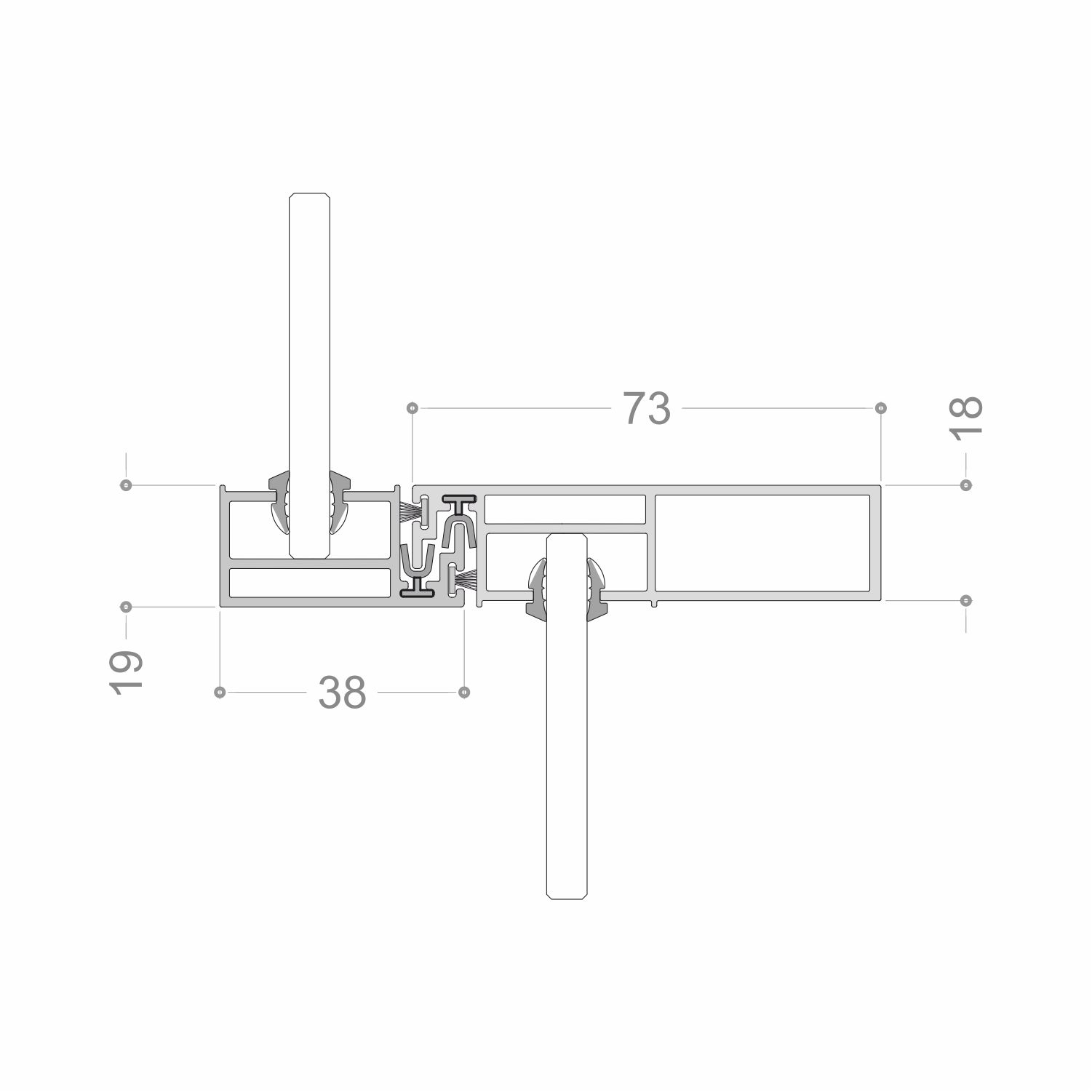

![Expanded View]()
