Specification
| Profile Alloy | 6063 |
| Glass Thickness | 06mm to 20mm |
| Glass Option | Single/Laminate/DGU |
| Max Height/Shutter | 2400 mm |
| Max Weight/Shutter | 150 kg |
| Multi Locking/Single Point Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Roller Bearings | S.S. 304 Grade/Nylon |
| Stainless Steel Rail | Yes |
| Frame Height | 50 mm |
| Frame Width (2T) | 123 mm |
| Sightline At Interlock | 25 mm |
| Sound Insulation | 25 db |
| Wind Load Resistance | Up To 1.5KPa |
| Air Permeability | 200Pa |
| Water Tightness | 280 Pa |
×

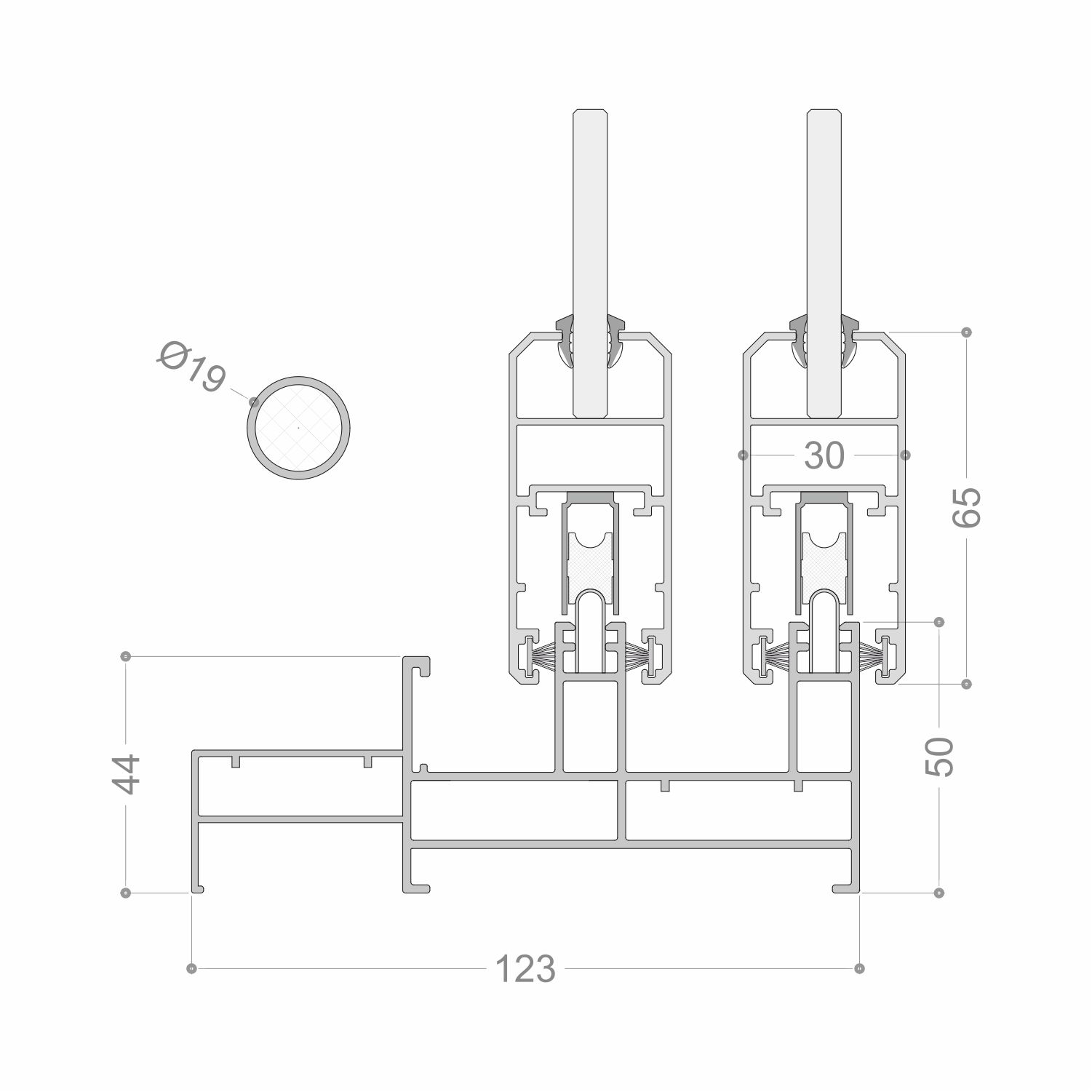

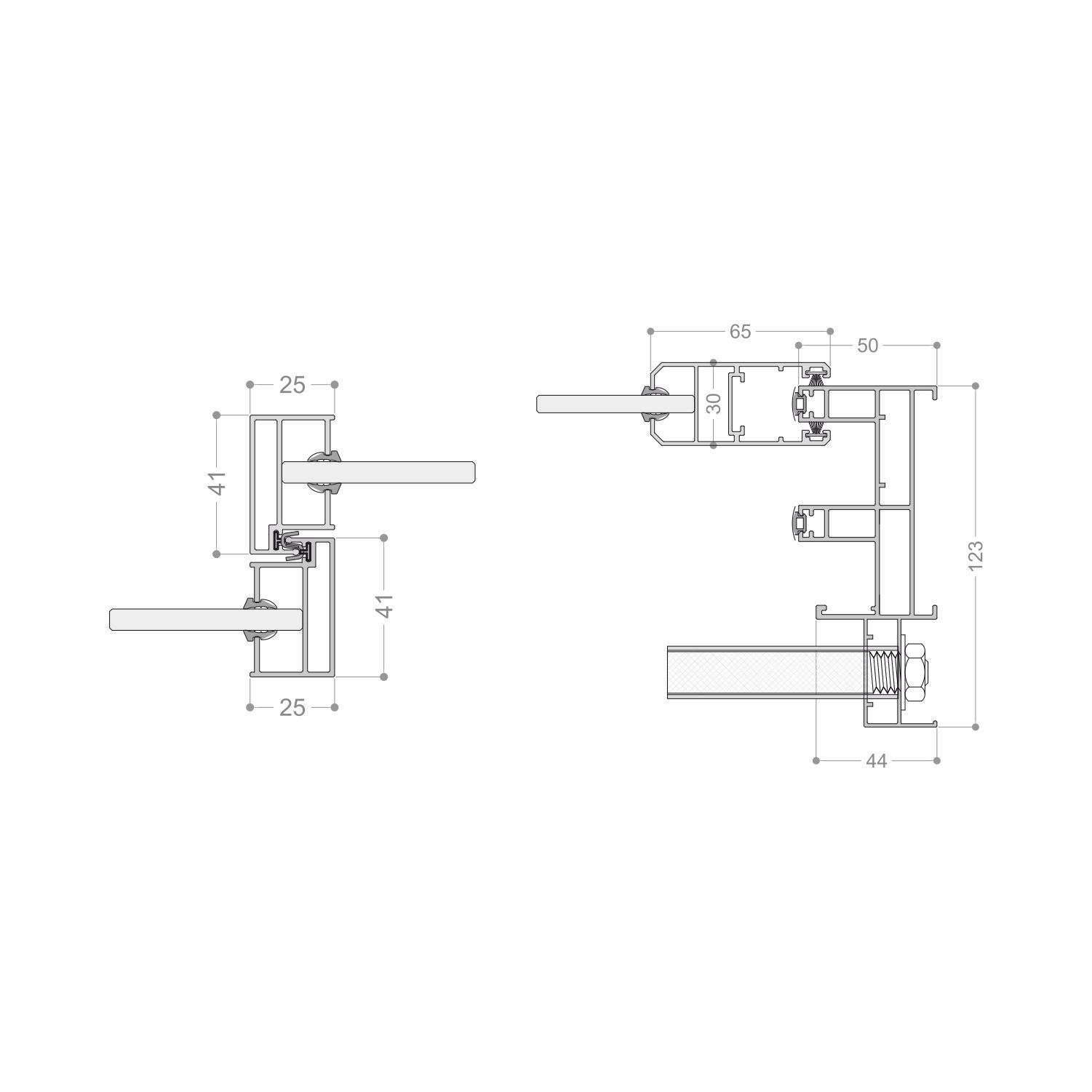

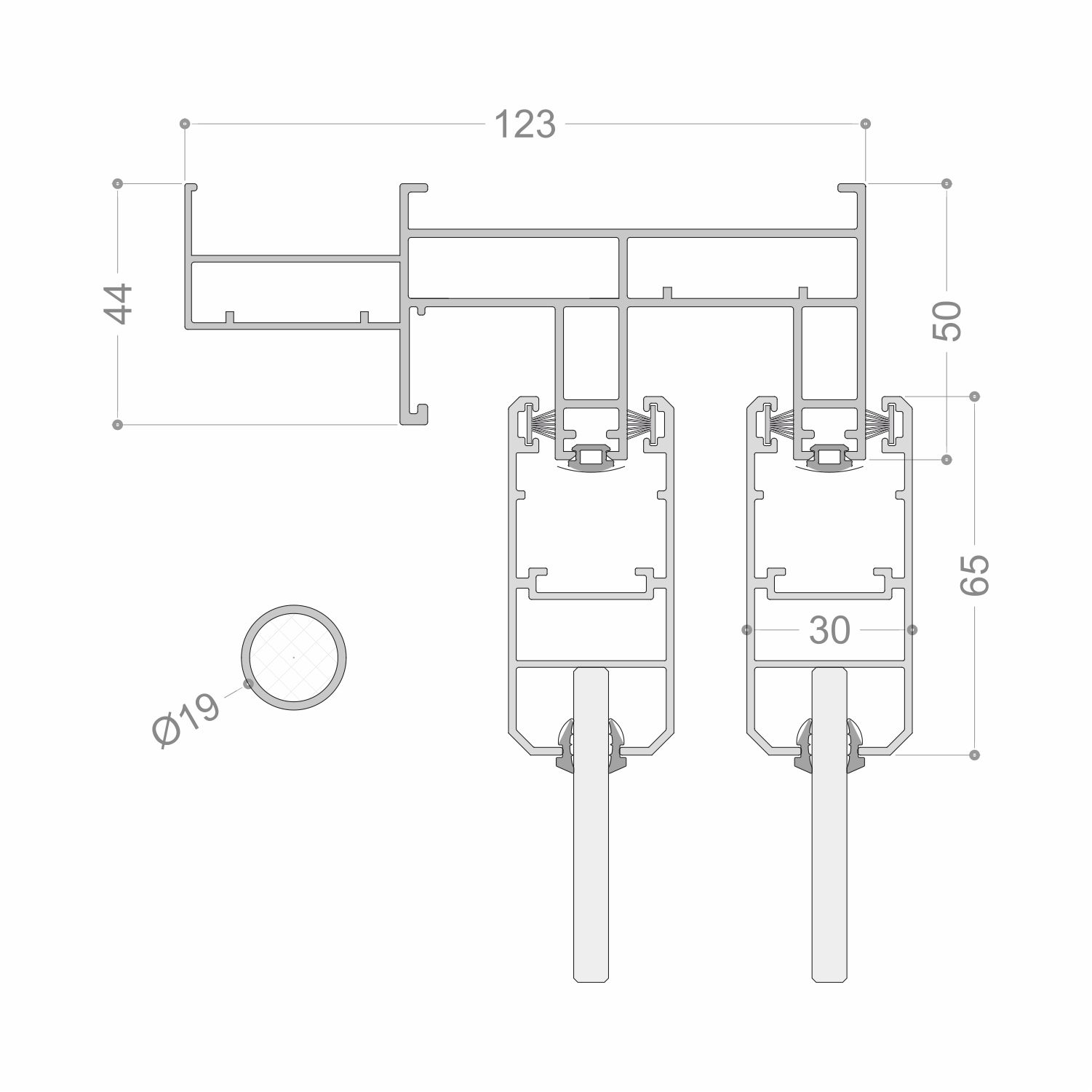

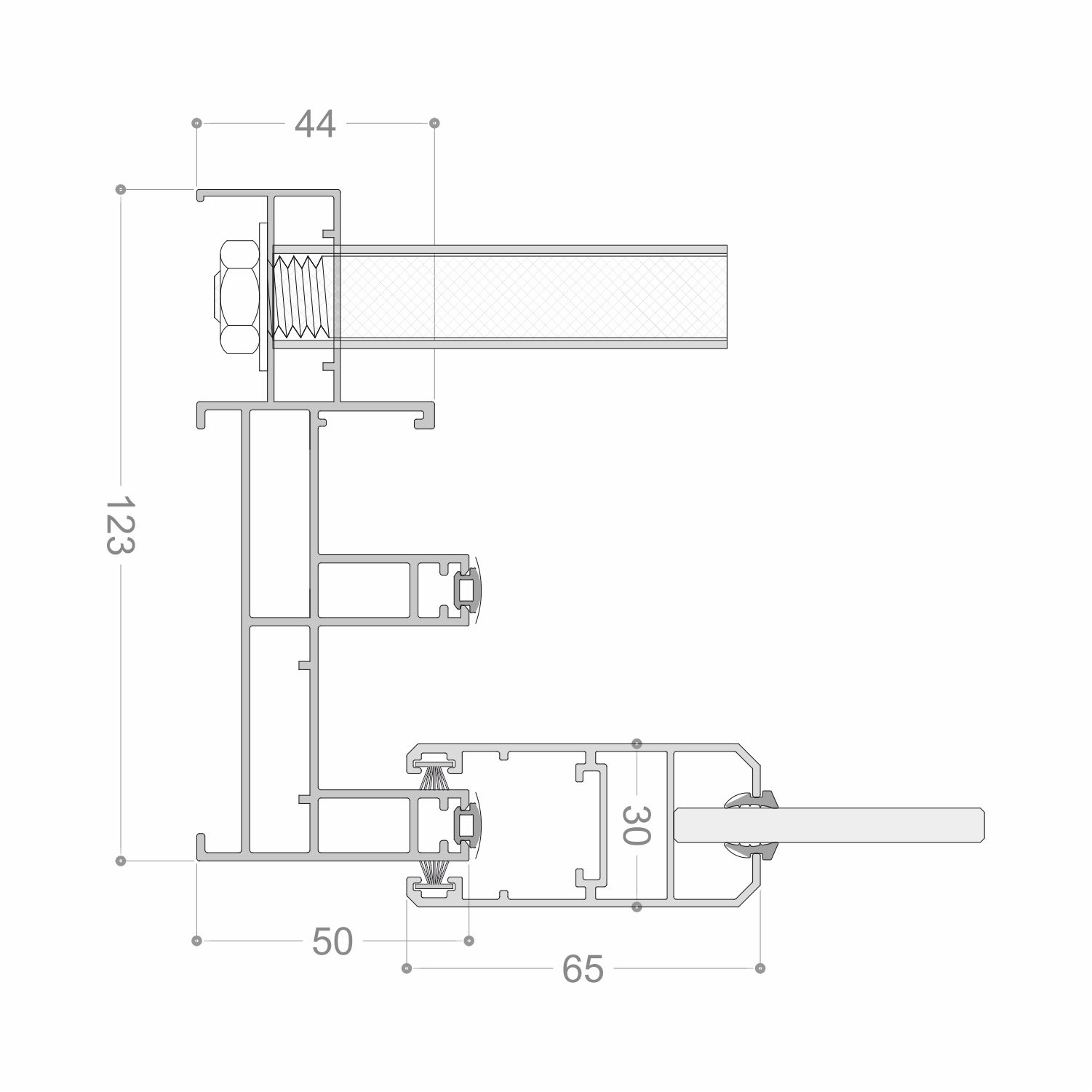

![Expanded View]()
