Specification
| Profile Alloy | 6063 |
| Glass Thickness | 05mm to 20mm |
| Max Width/Shutter | 900mm |
| Max Height/Shutter | 2400mm |
| Max Weight/Shutter | 60 kgs |
| Single/Multi Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hinge | Butt/Friction |
| Opening | Side Hung/Top Hung |
| Frame Height | 48 mm |
| Frame Width | 45 mm |
| Shutter | 45mm X 65mm |
| Mullion Sightline with Shutter | 165mm |
×

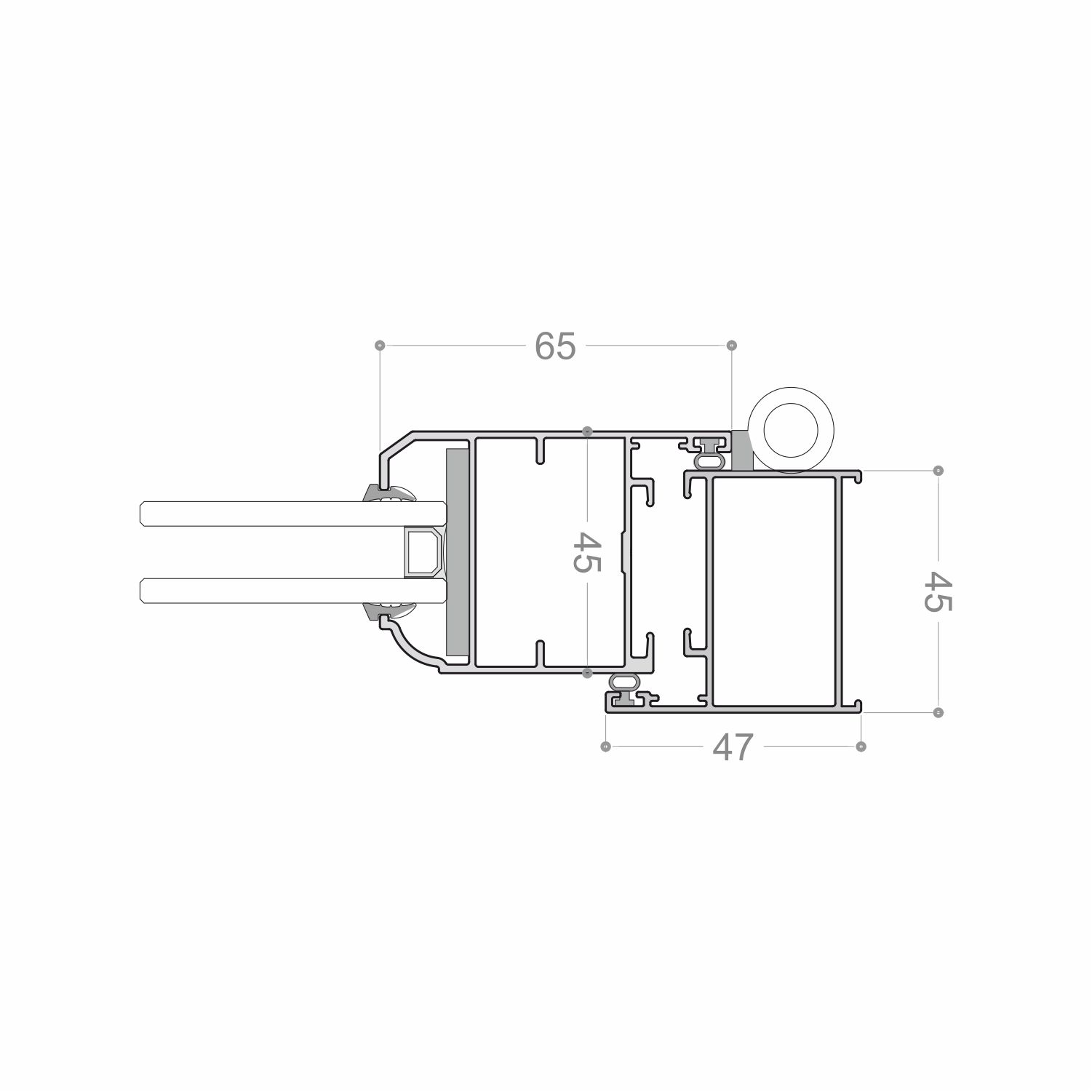

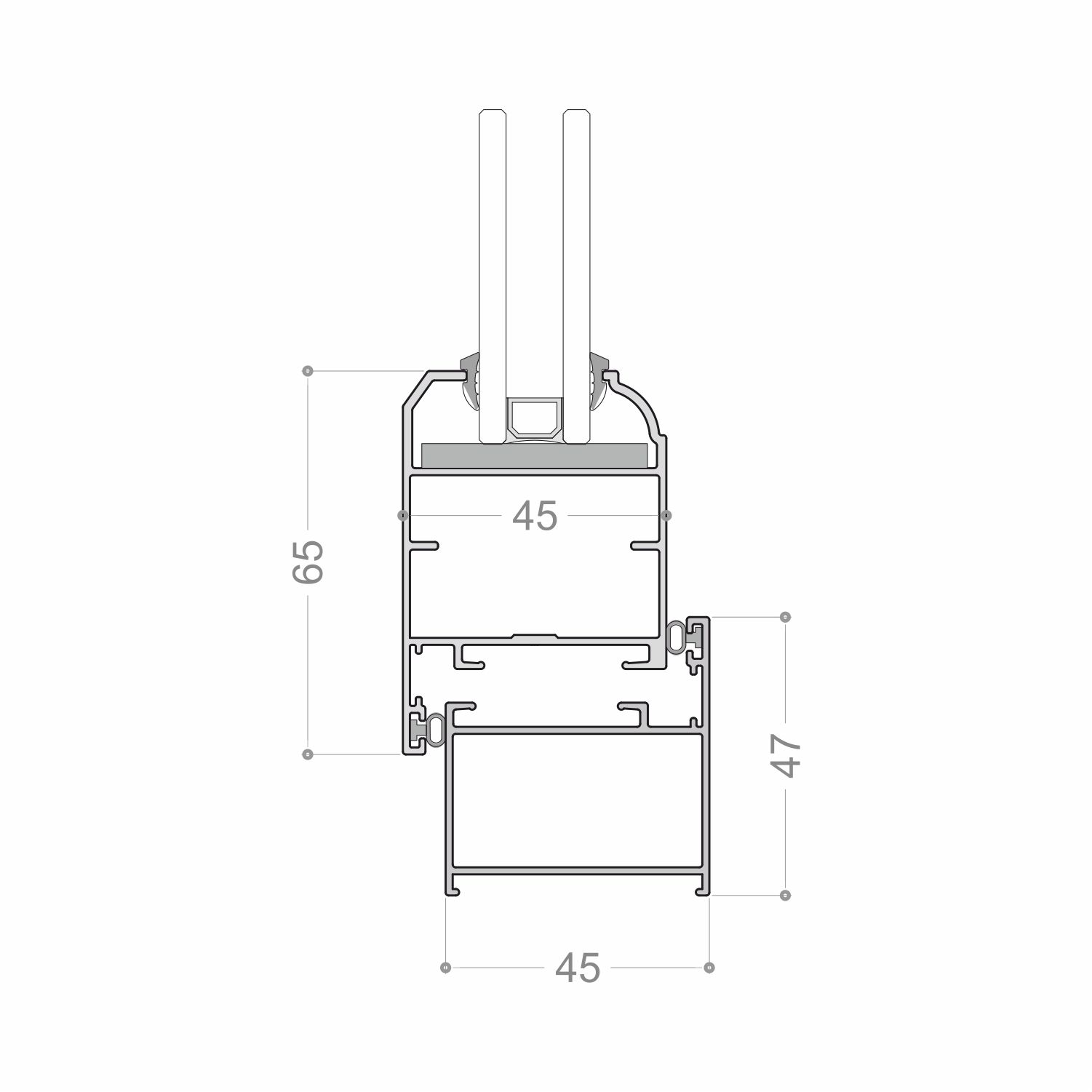

![Expanded View]()
