Specification
| Profile Alloy | 6063 |
| Glass Thickness | 5mm to 18mm |
| Security Option | Safety Grill (With 16mm MS Bright Bar) |
| Max Width/Shutter | 750mm |
| Max Height/Shutter | 2100mm |
| Max Weight/Shutter | 40 kgs |
| Multi Locking / Single Point Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hinge | Butt/Friction |
| Opening | Side Hung/Top Hung |
| Frame Height | 49mm |
| Frame Width | 114mm |
| Shutter | 40mm X 52mm |
| Mullion Sightline with Shutter | 134mm |
×

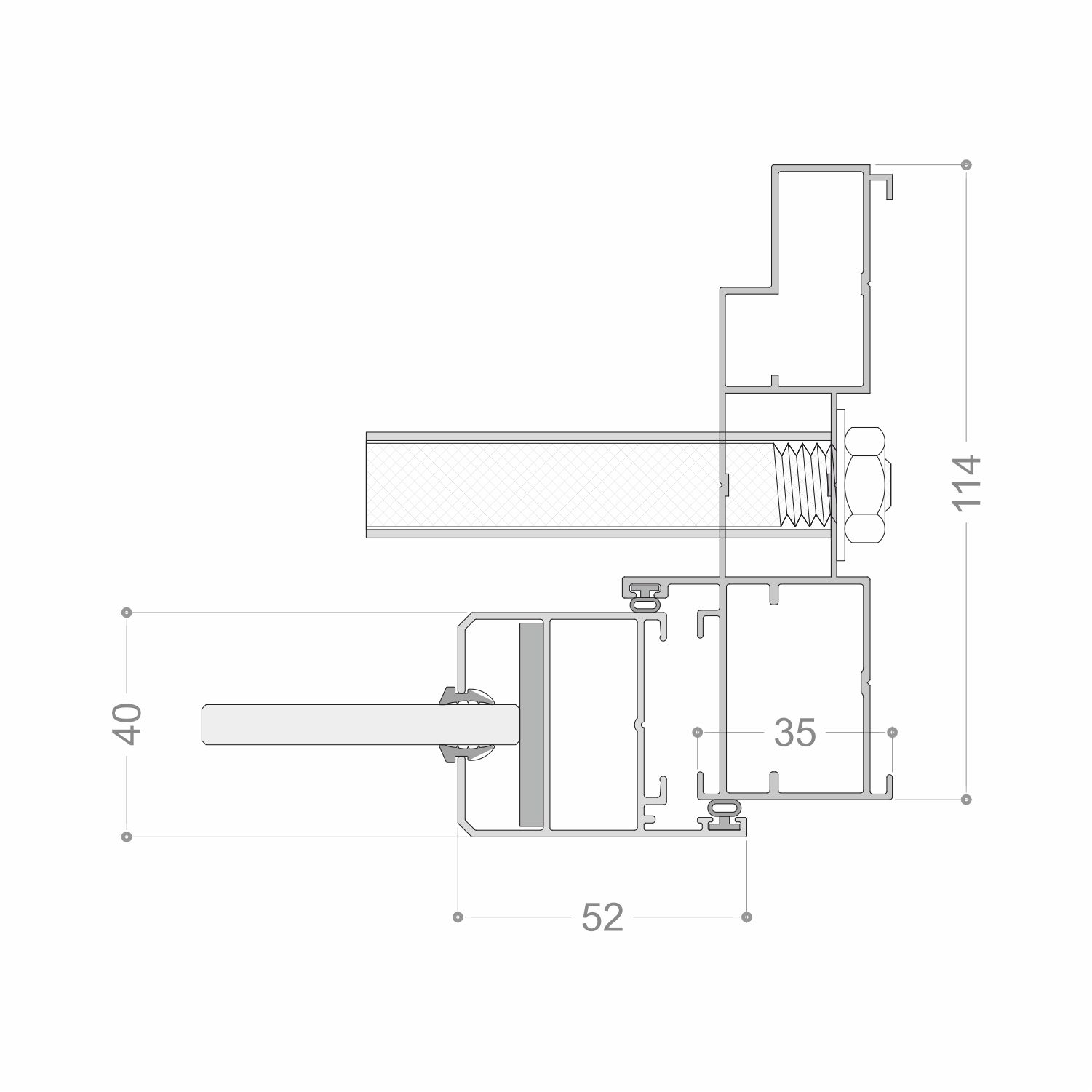

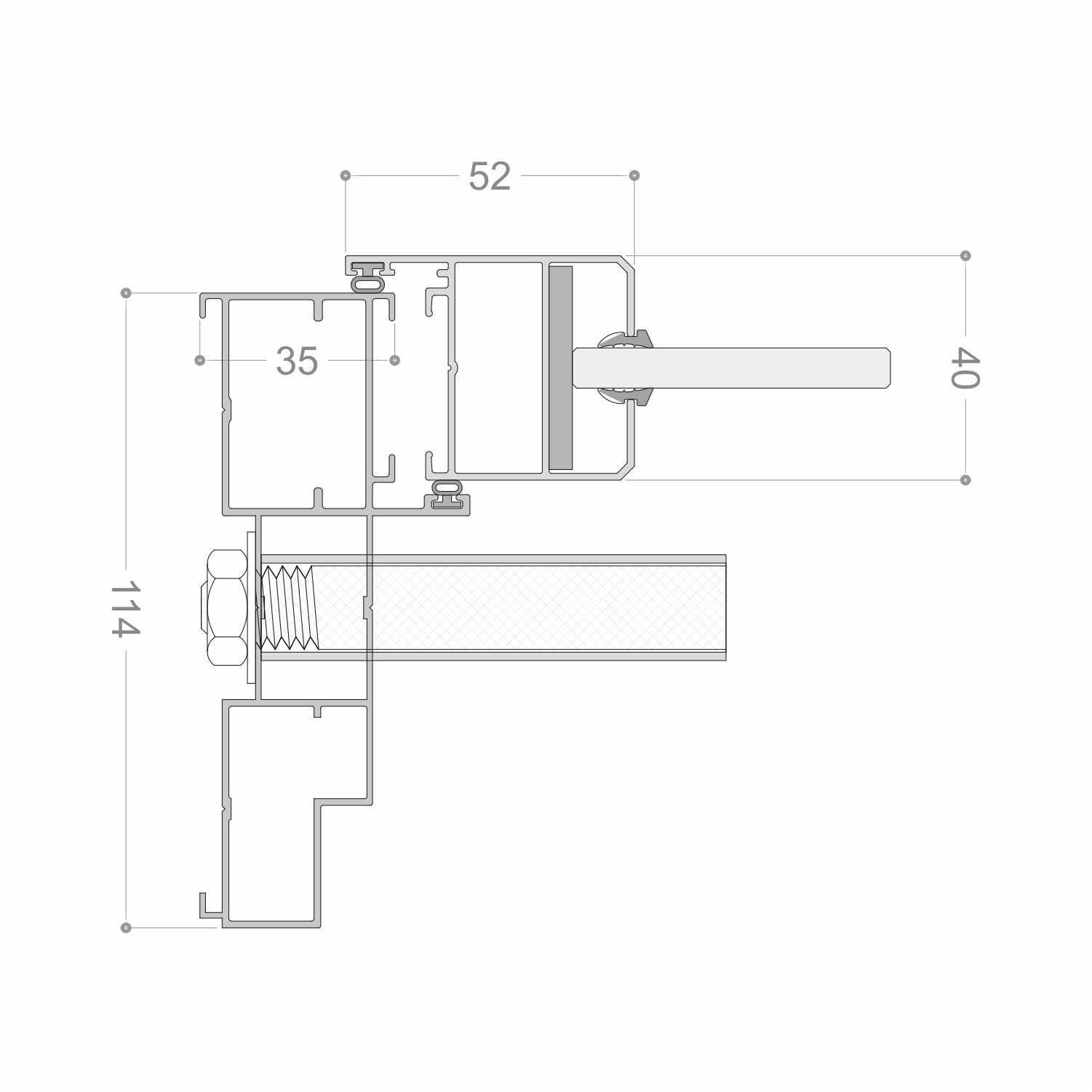

![Expanded View]()
