ULTRA SLIM, MAXIMUM ELEGANCE.

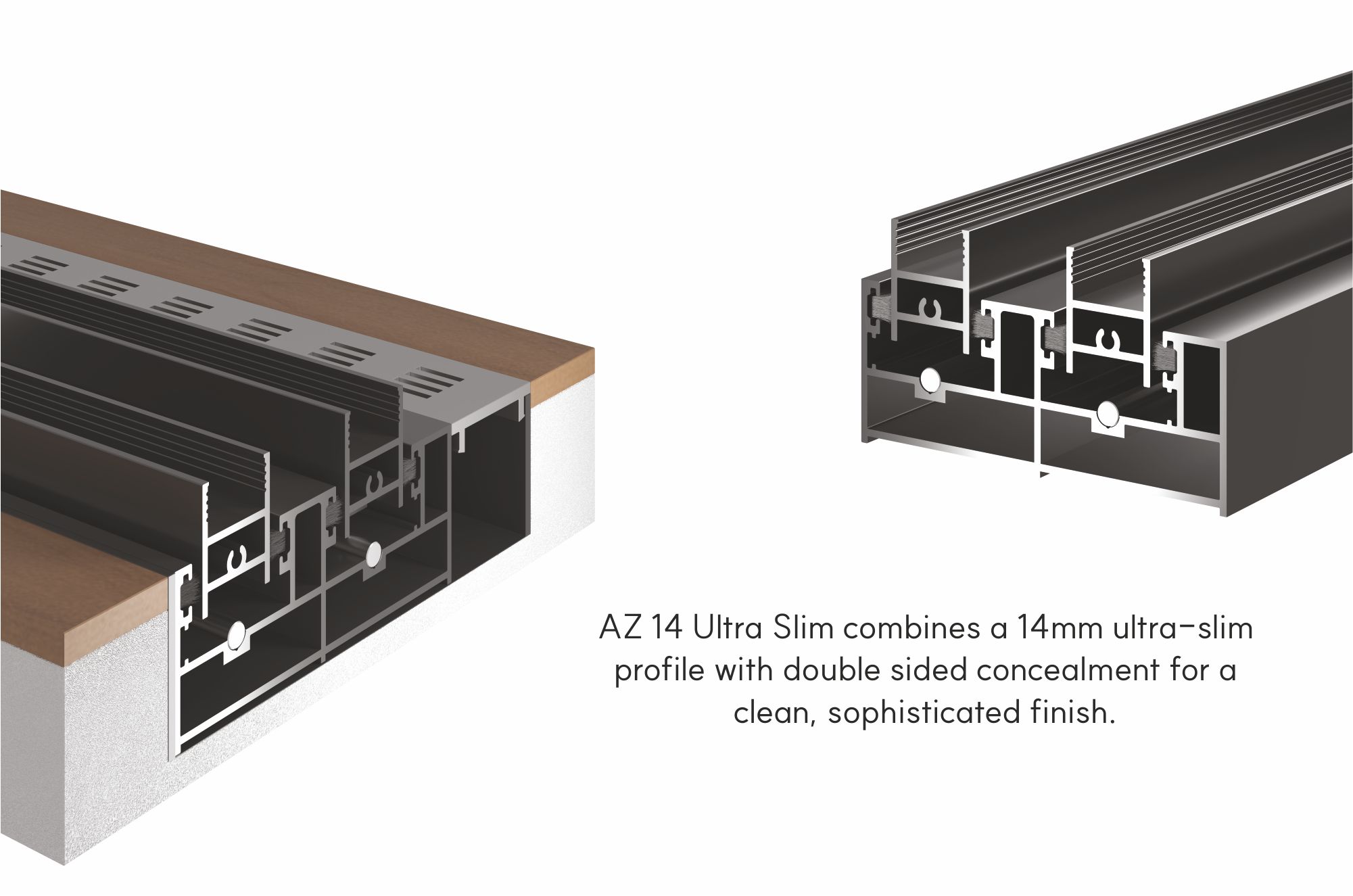

AZ 14 Ultra Slim combines a sleek 14mm profile with modern aesthetics, enhancing any space with style and clarity.
Specification
| Profile alloy | 6063 |
| Glass thickness | 10mm, 11.52mm, 12mm, 13.52mm |
| Max Height/Shutter | 3600 mm |
| Max Weight/Shutter | 400 kg |
| Multi Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hidden Bottom | Yes |
| Corner Opening | Yes |
| Roller Bearings (320 KG/ Per Bearing) | S.S. 304 Grade |
| Stainless Steel Rail | S.S. 304 Grade |

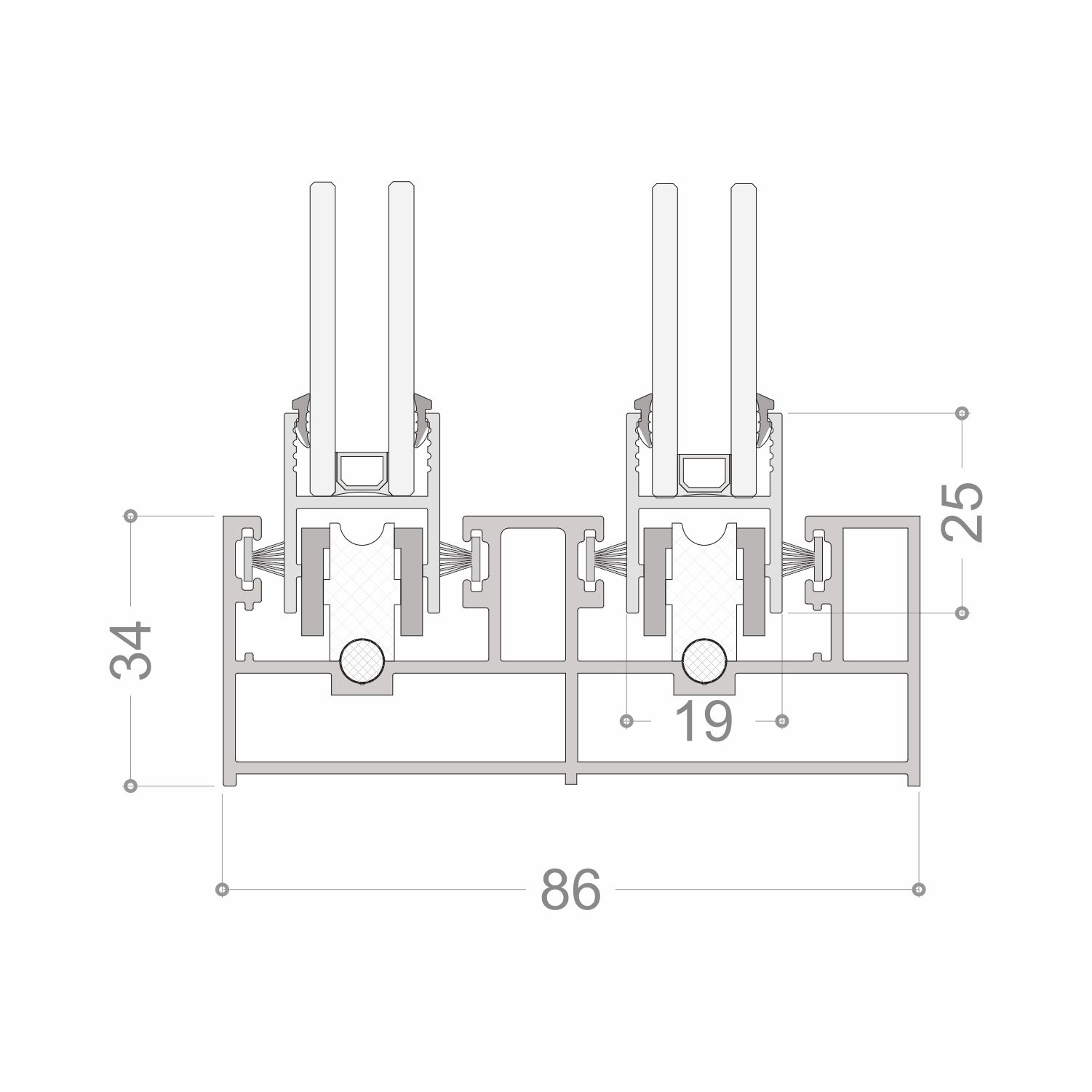

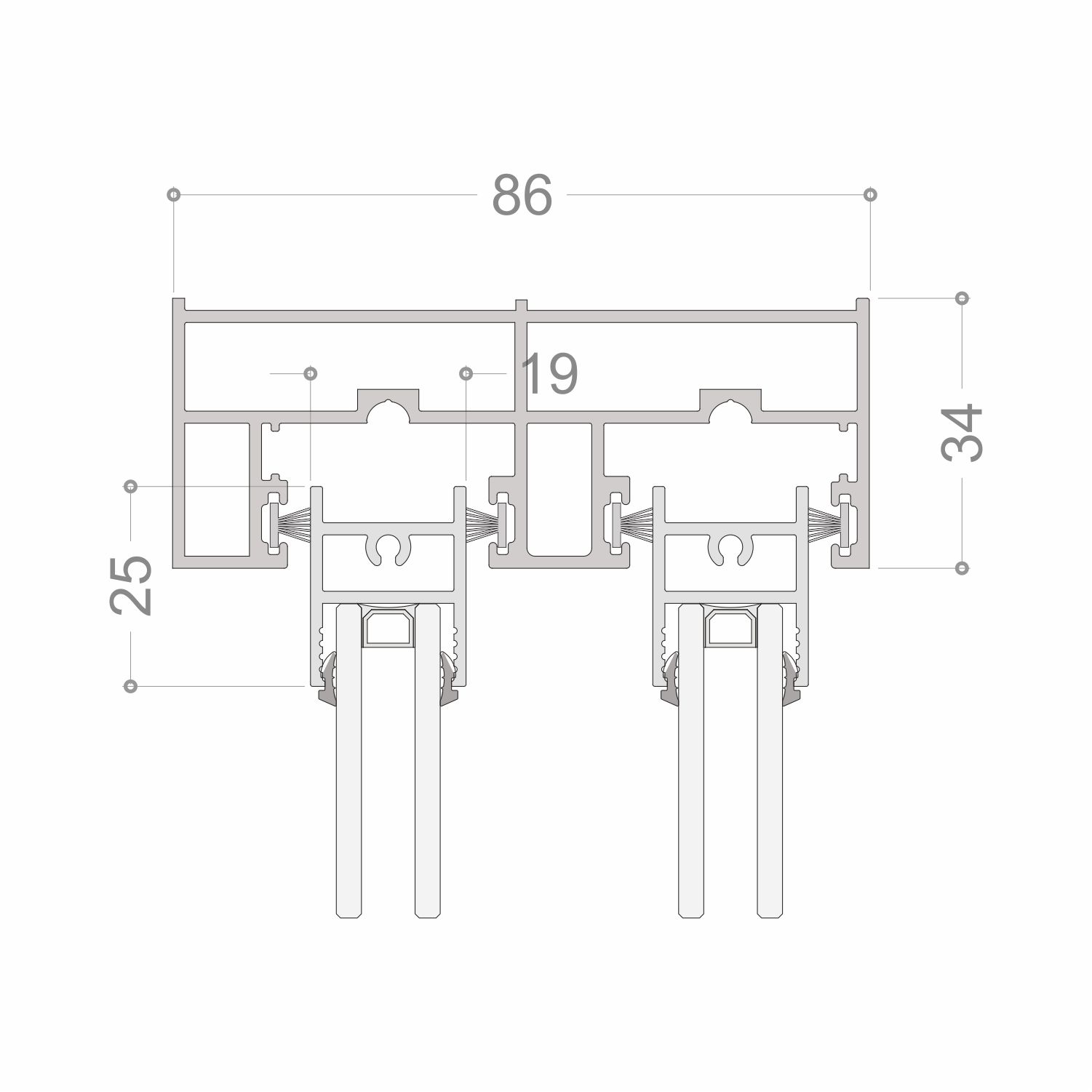

| Frame Height | 33 mm |
| Frame Width (2T) | 86 mm |
| Frame Width (3T) | 129 mm |

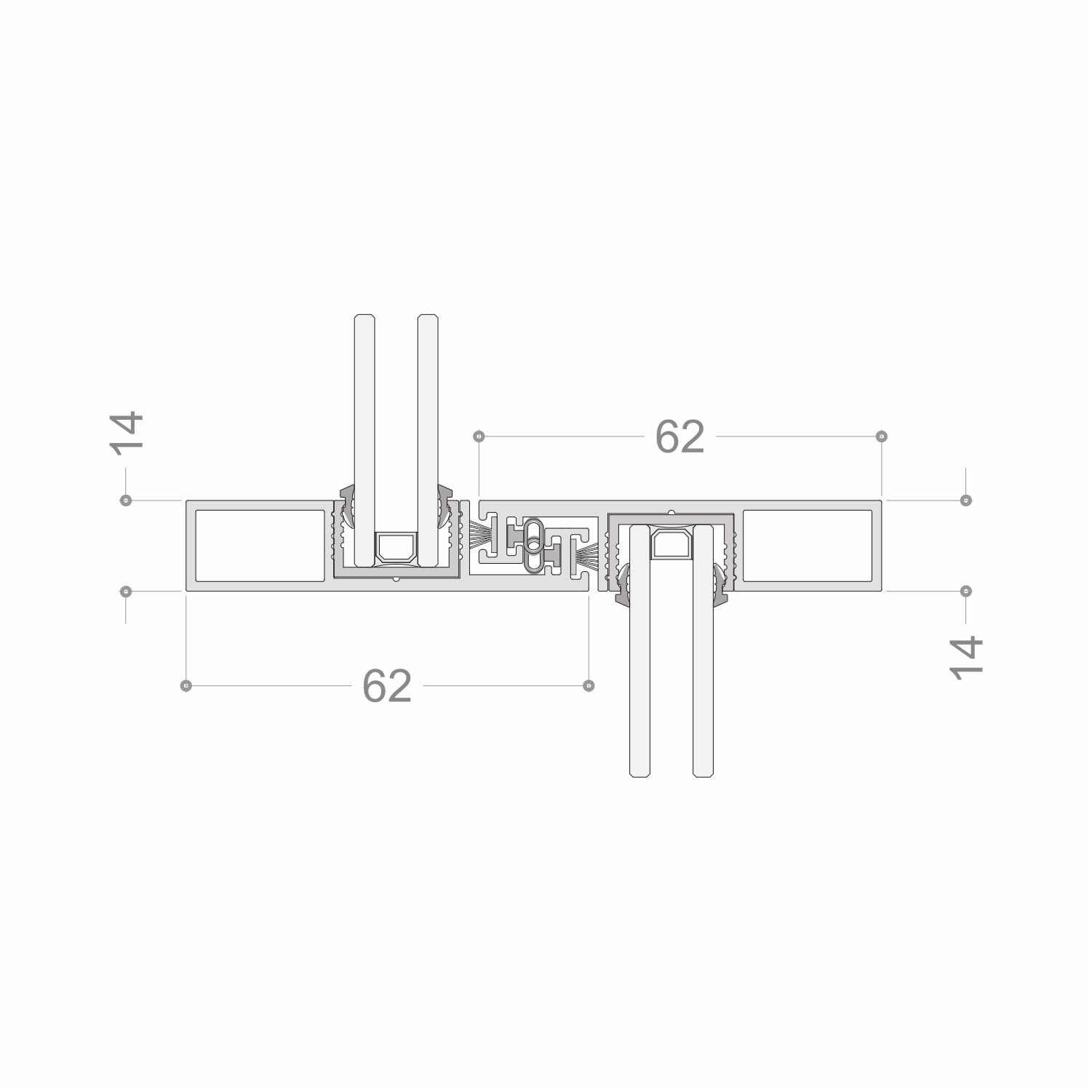

| Sightline At Interlock | 14 mm |
| Sound Insulation | 35 db |
| Wind Load Resistance | Up To 2.5KPa |
| Air Permeability | 300Pa |
| Water Tightness | 390 Pa |
×
![Expanded View]()
