Specification
| Profile alloy | 6063 |
| Glass thickness | 06mm to 32mm |
| Security Option | 16mm S.S. Shoot Bolt System |
| Max Width/Shutter | 900mm |
| Max Height/Shutter | 3300mm |
| Max Weight/Shutter | 150 Kgs |
| Multi Locking | Yes |
| Mosquito Mesh Solution | Yes |
| Hinge | S.S. 304 Grade |
| Opening | Inside/Outside |
| Stainless Steel Rail | Double S.S. 304 Rail |
| Frame Height | 70mm INSIDE X 50mm OUTSIDE |
| Frame Width | 70mm |
| Shutter | 60mm X 79mm |
| Sightline At Shutter | 125mm |
| Sound Insulation | 35 db |
| Wind Load Resistance | Up To 1.2KPa |
| Air Permeability | 600Pa |
| Water Tightness | 600Pa |
×

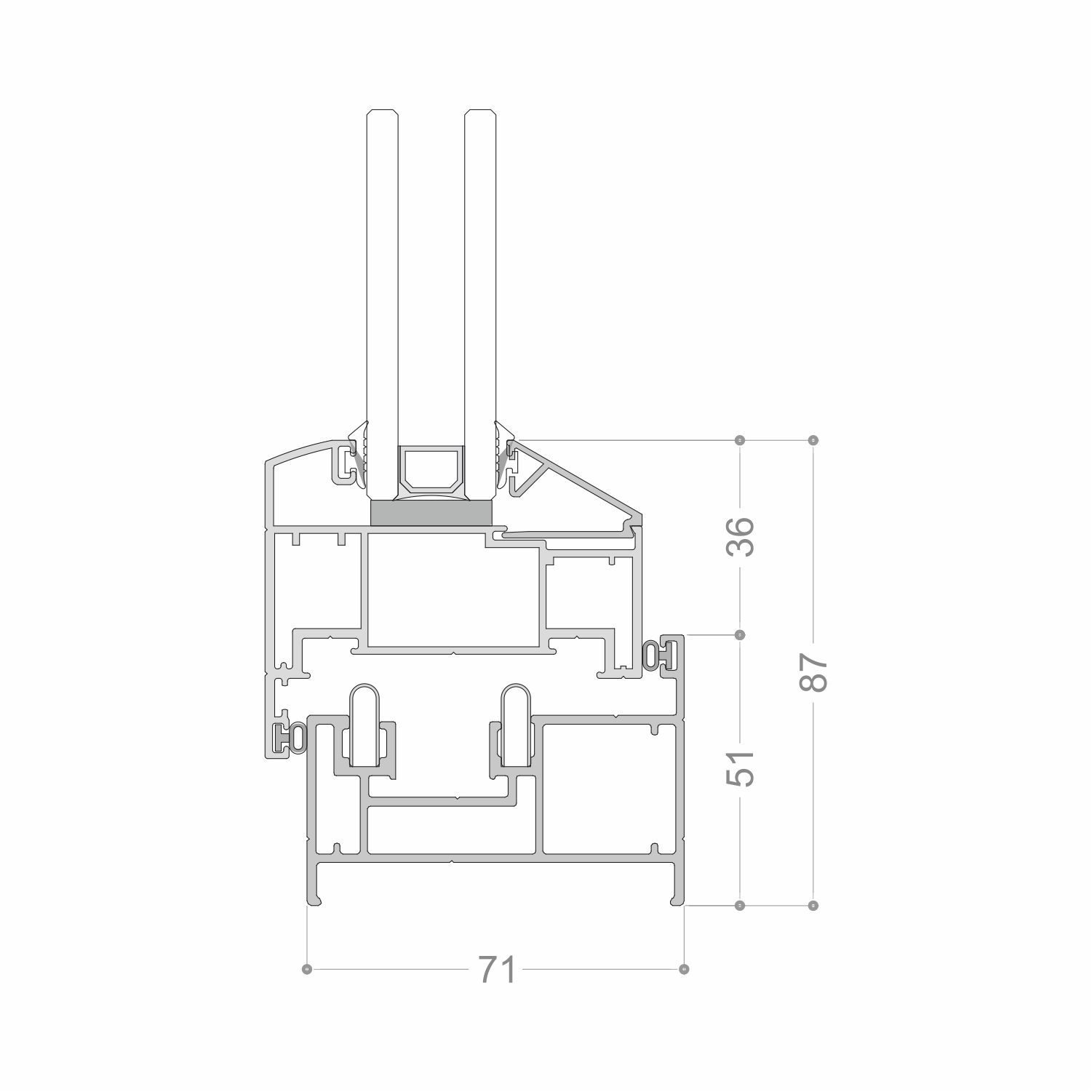

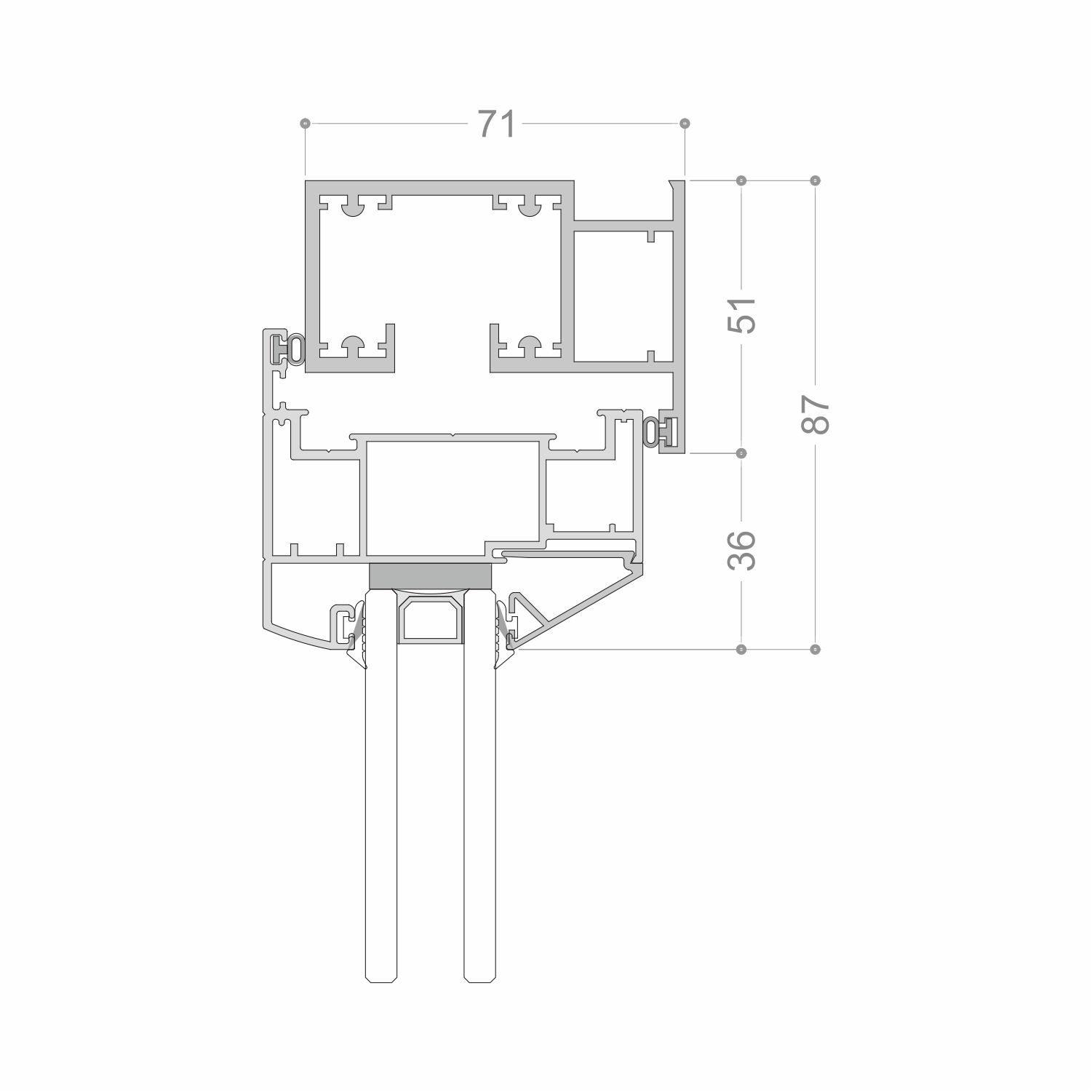

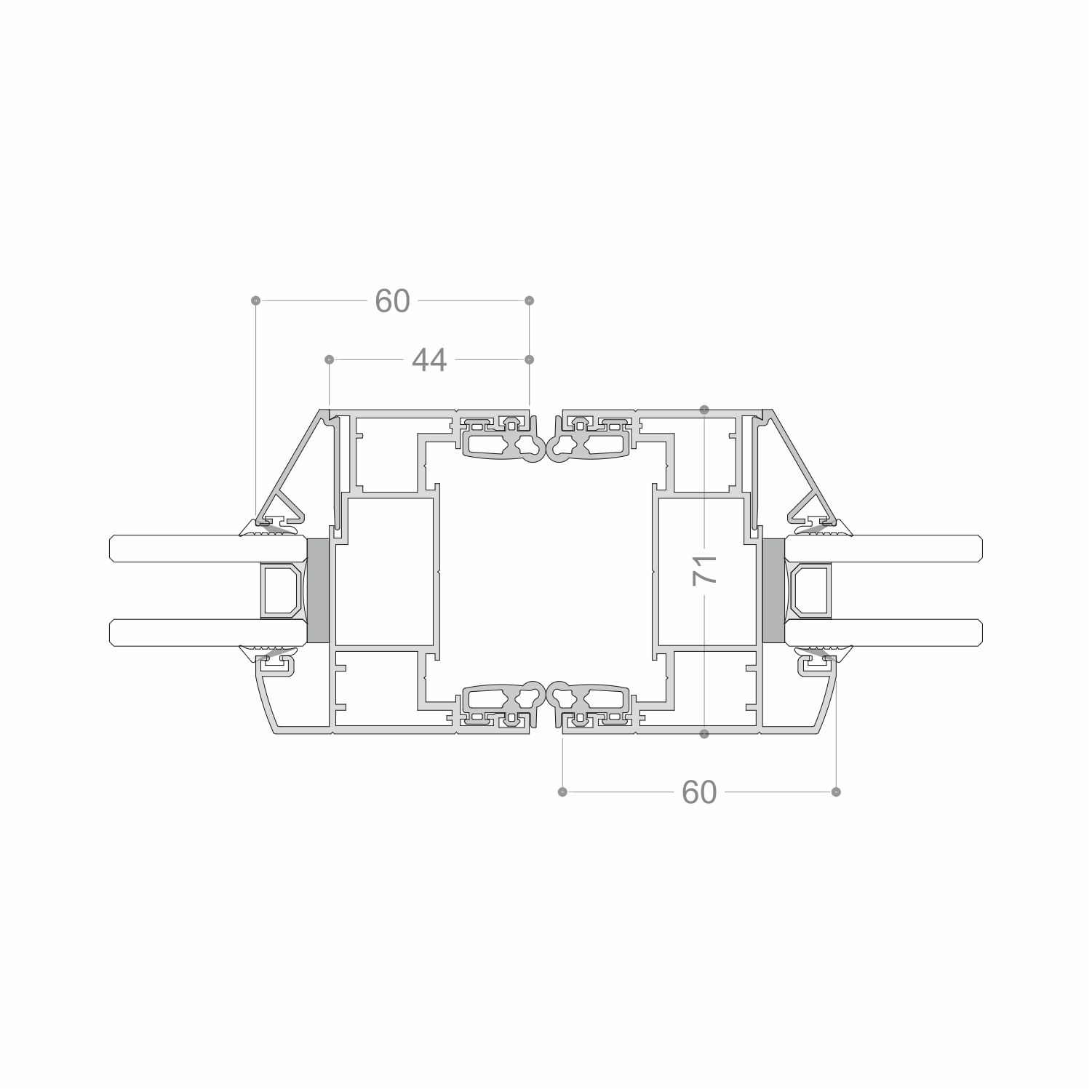

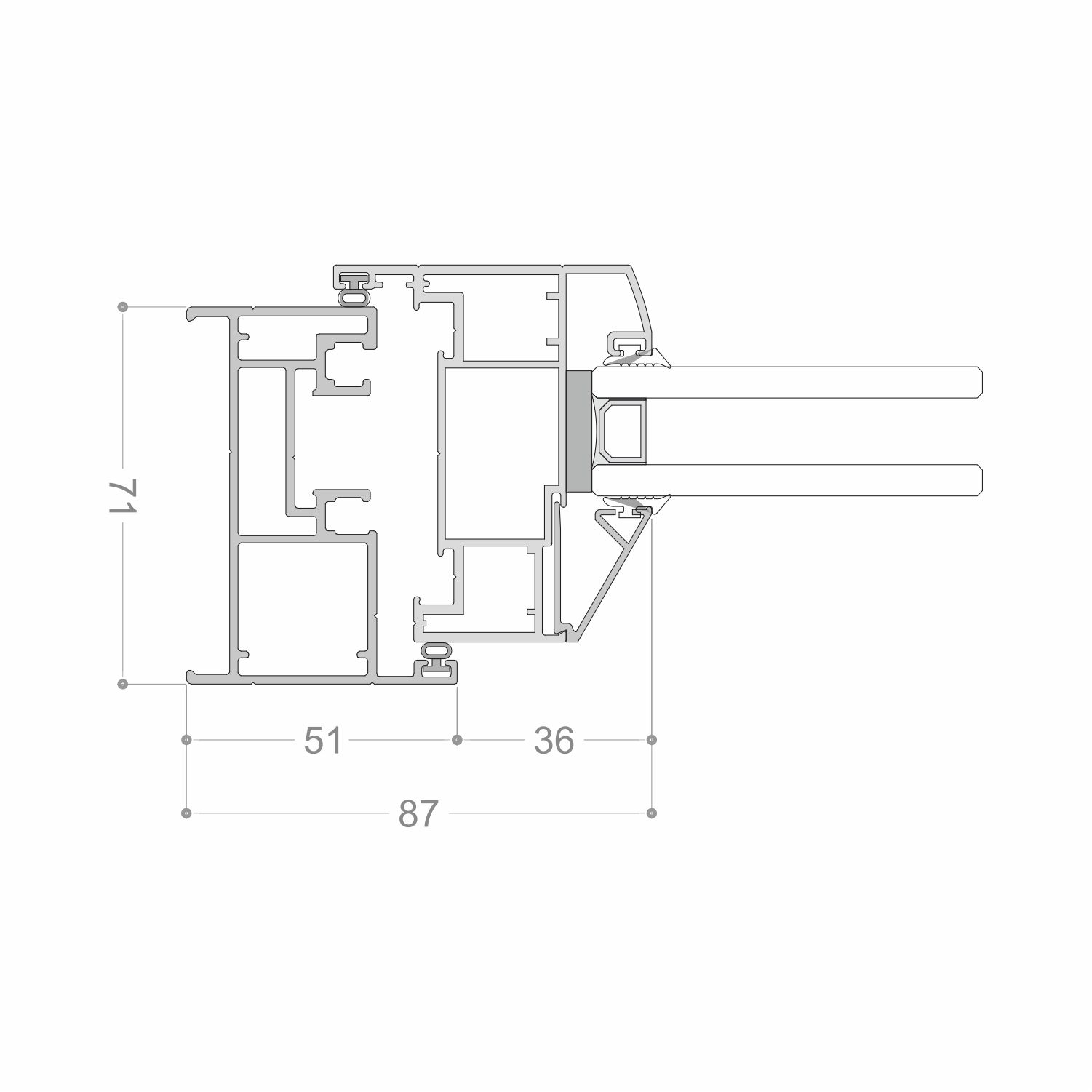

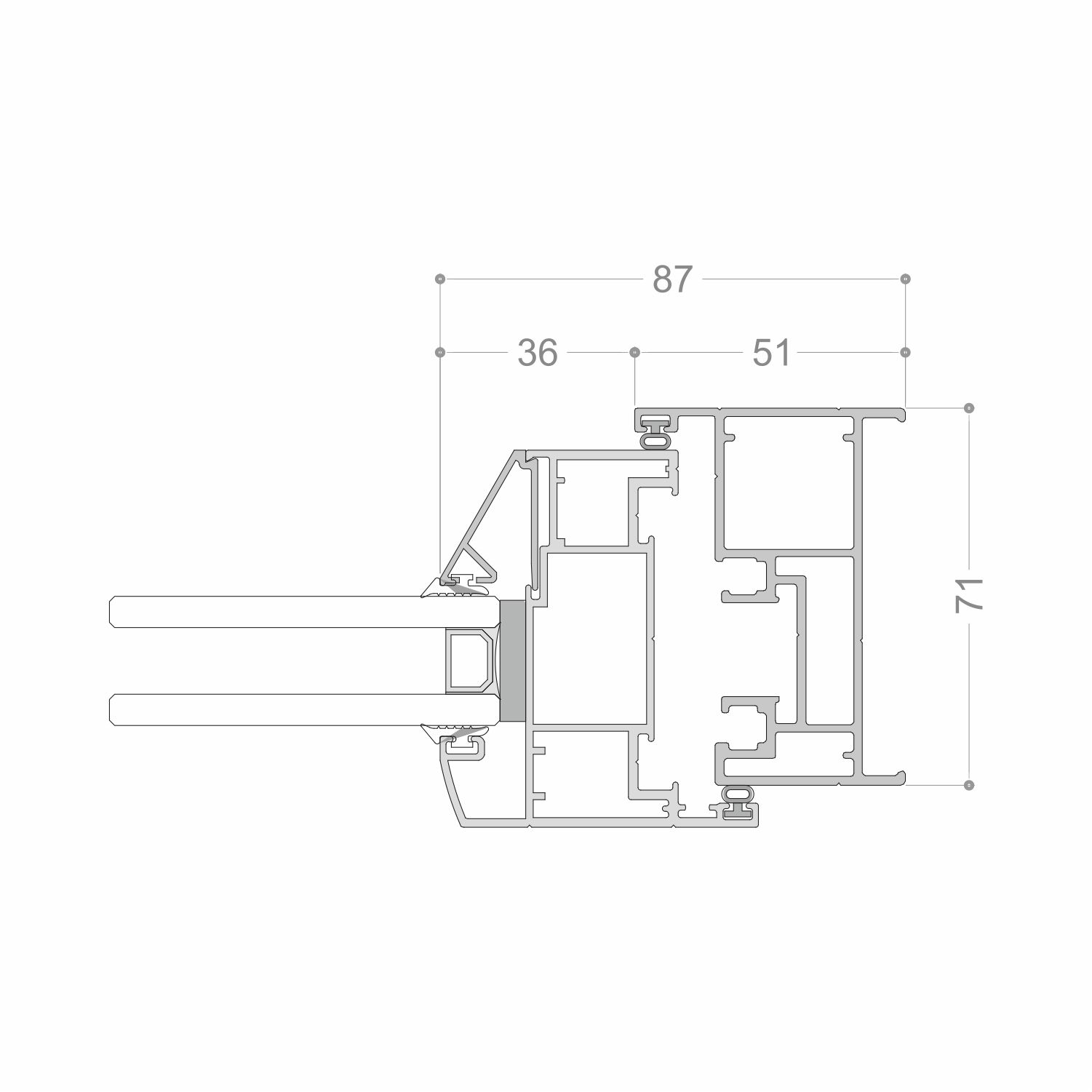

![Expanded View]()
