Specification
| Profile alloy | 6063 |
| Glass thickness | 08mm to 40mm |
| Glass Option | Single / Laminate DGU / Dgu Laminate |
| Sound Reduction | Up to 40 db |
| Min. Visible Width (Interior View) | 20mm |
| Min. Visible Width (Exterior View) | 20mm |

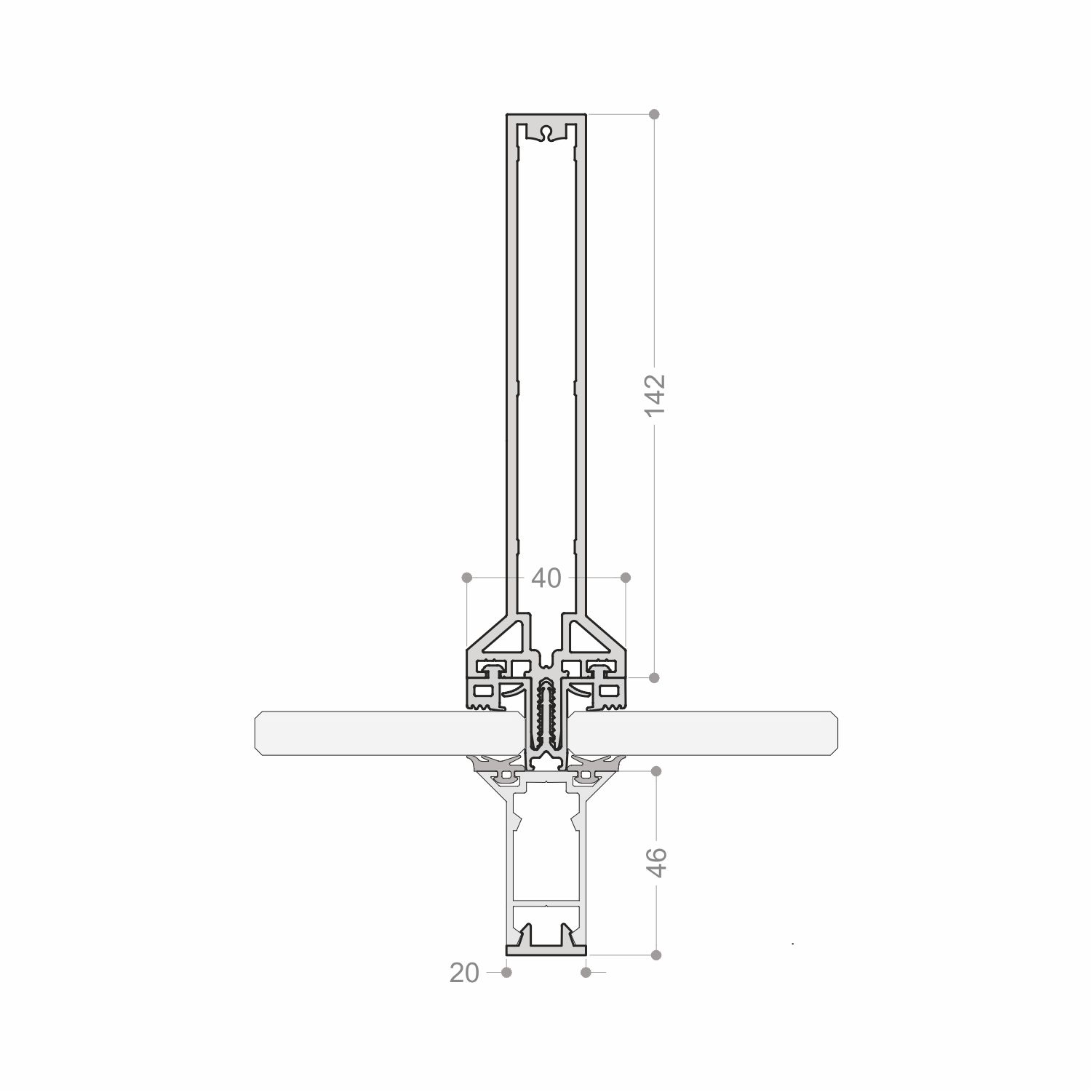

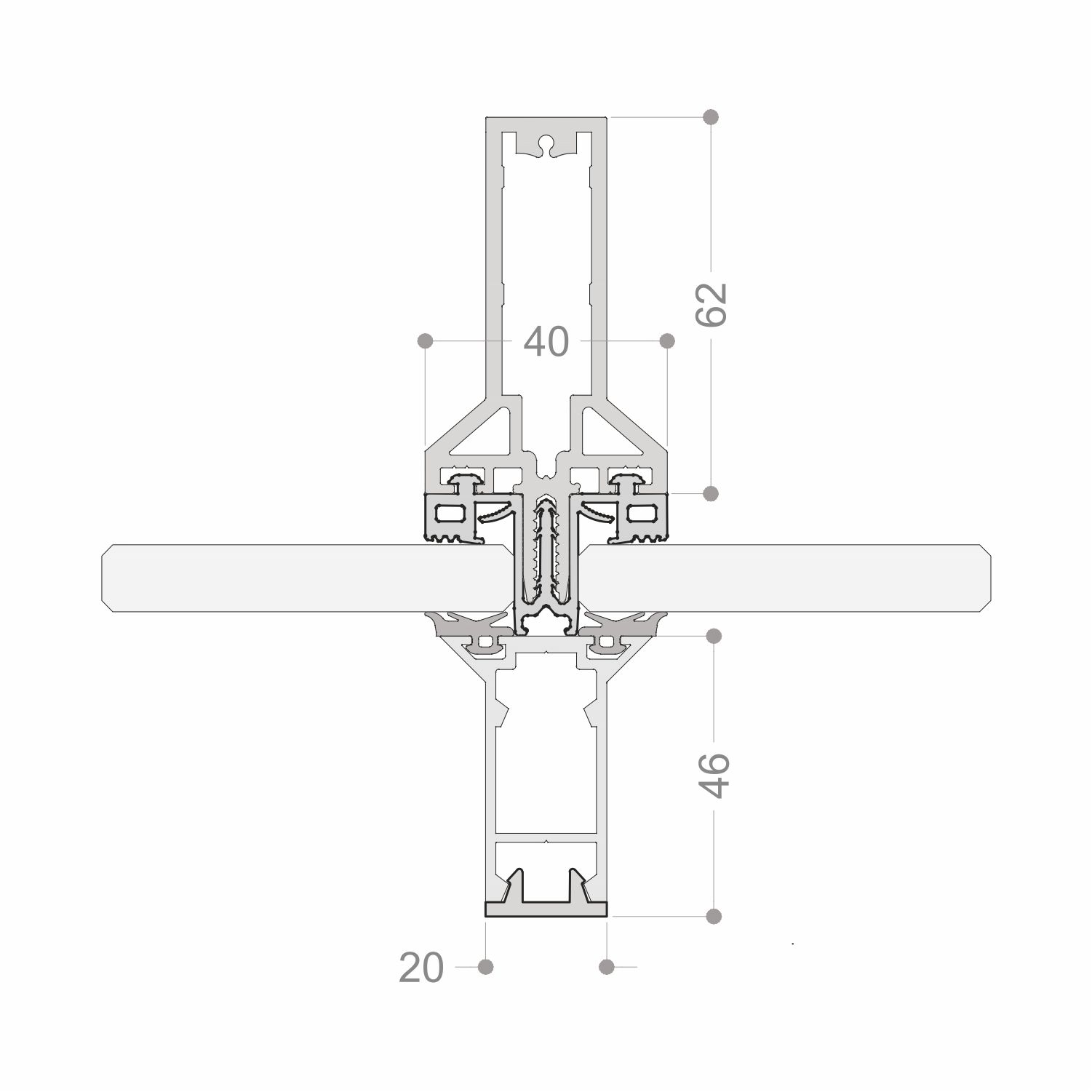

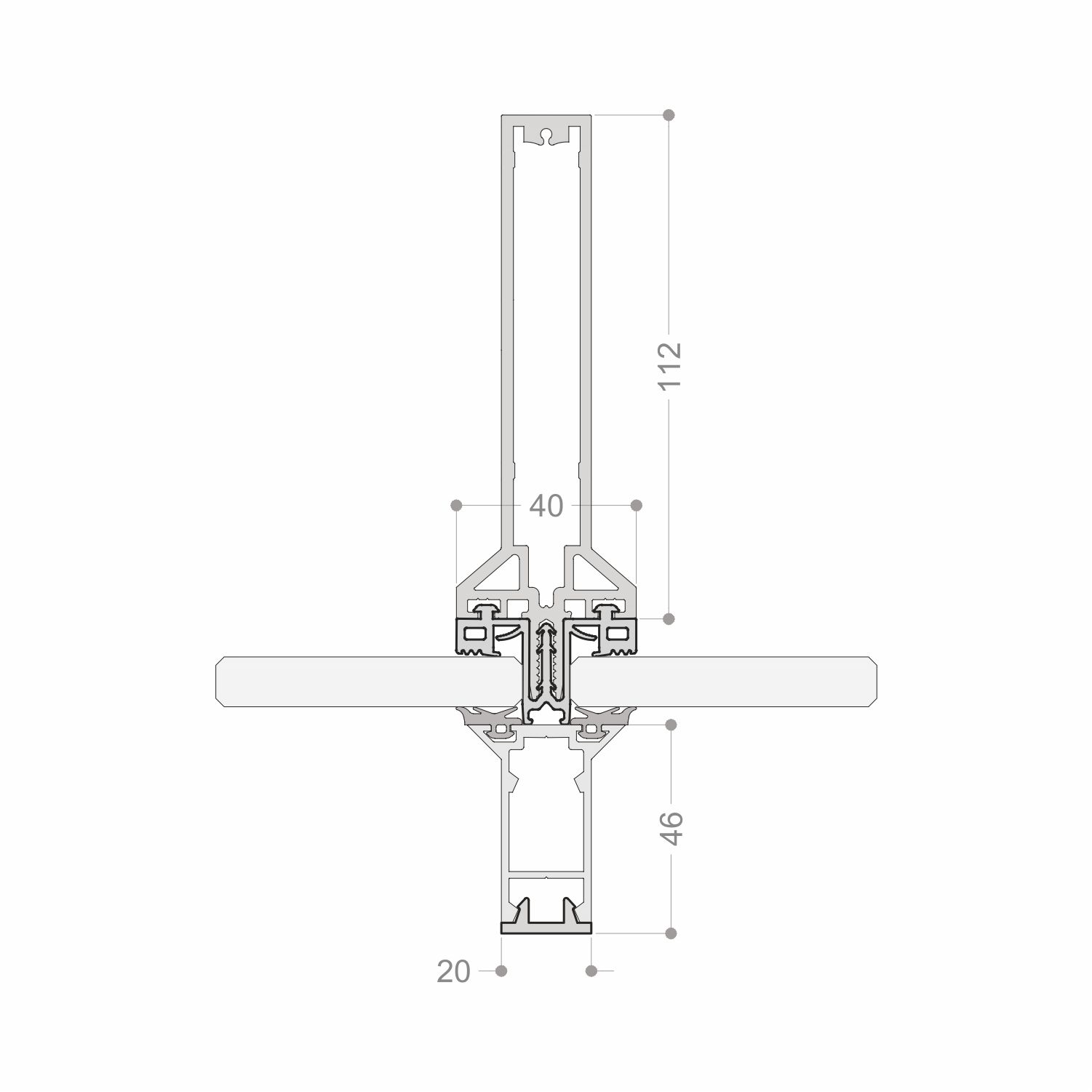

| Mullion Depth Option | 80mm, 130mm, 160mm |
| Reinforcement Option | Option Steel Reinforcement |
| Wind Load Resistance | in Case of High Wind Load Up to 1.5 Kpa |
| Air Permeability | 700pa |
| Water Tightness | 650pa |
×
![Expanded View]()
